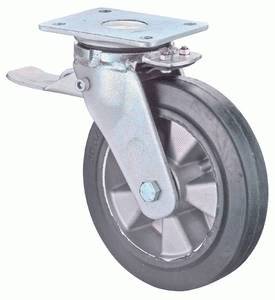

Tugevdatud rattad

Tugevdatud ratas

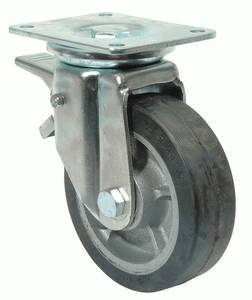

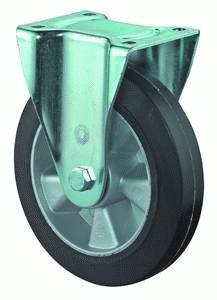

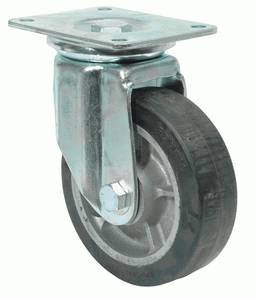

swivel castor swivel castor with brake fixed castor

Kirjeldus

  • Lehtterasest kahvel, tsink-kroom kate
  • Kaherealine kuullaager pöördpeas
  • Tugevdatud versioon



Mudel

  • pöörlev ratas
  • pöörlev ratas piduriga
  • kinnitatud ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
100 40 150 153 138x110 105x75 11 44 N100.B80.101   N110.B80.101
125 50 220 178 138x110 105x75 11 46 N100.B80.125 N120.B80.125 N110.B80.125
160 50 300 214 138x110 105x75 11 48 N100.B80.160 N120.B80.160 N110.B80.160
200 50 450 255 138x110 105x75 11 52 N100.B80.200 N120.B80.200 N110.B80.200
250 50 550 295 138x110 105x75 11 55 N100.B80.251 N120.B80.251 N110.B80.251
load capacity (kg) 150 - 550 kg

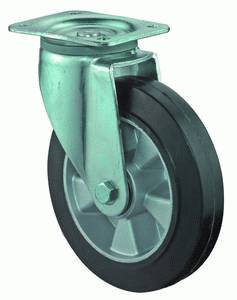

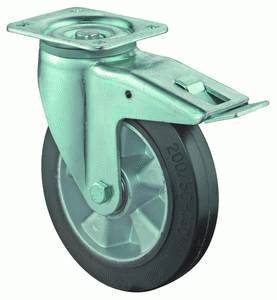

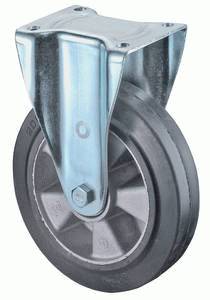

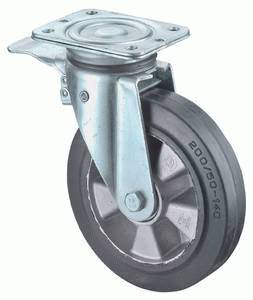

Tugevdatud ratas

Veerepind

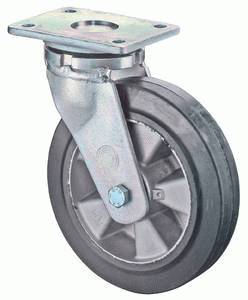

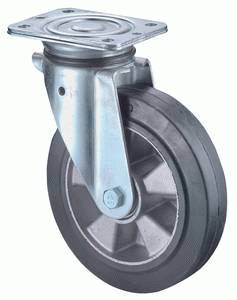

Must elastne rehv
Velg
Alumiinium
Laager
Kuullaager
Transport castor
Kataloogi leht: 126

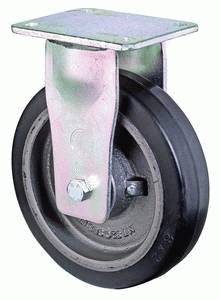

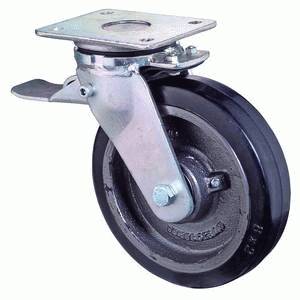

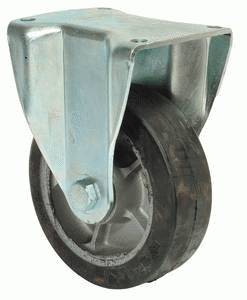

Tugevdatud ratas
  swivel castorswivel castor with brakefixed castor

Kirjeldus

  • Lehtterasest kahvel, tsink-kroom kate
  • Kaherealine kuullaager pöördpeas
  • Tugevdatud versioon

Mudel

  • pöörlev ratas
  • pöörlev ratas piduriga
  • kinnitatud ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
100 50 210 153 138x110 105x75 11 44 N100.B81.100   N110.B81.100
125 50 275 178 138x110 105x75 11 46 N100.B81.125 N120.B81.125 N110.B81.125
150 50 350 209 138x110 105x75 11 48 N100.B81.151 N120.B81.151 N110.B81.151
200 50 450 255 138x110 105x75 11 52 N100.B81.202 N120.B81.202 N110.B81.202
250 50 500 295 138x110 105x75 11 55 N100.B81.253 N120.B81.253 N110.B81.253
load capacity (kg) 210 - 500 kg

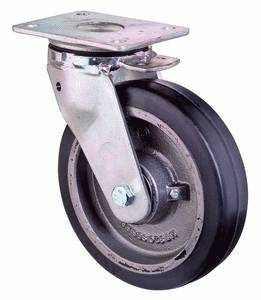

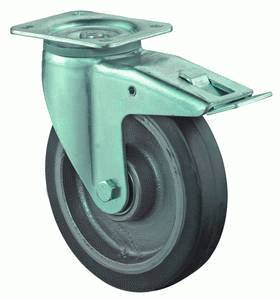

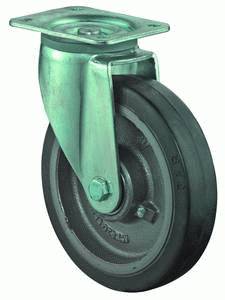

Tugevdatud ratas

Veerepind
Must elastne rehv
Velg
Valatud malm
Laager
Kuullaager
Rubber wheel
Kataloogi leht: 126

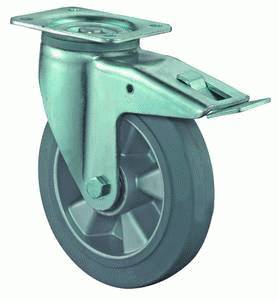

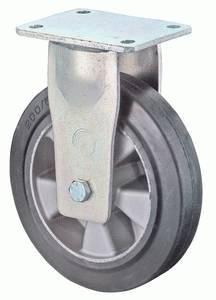

Tugevdatud ratas
swivel castorswivel castor with brakefixed castor

Kirjeldus

  • Lehtterasest kahvel, tsink-kroom kate
  • Kaherealine kuullaager pöördpeas
  • Tugevdatud versioon

Mudel

  • pöörlev ratas
  • pöörlev ratas piduriga
  • kinnitatud ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
100 40 150 153 138x110 105x75 11 44 N100.B83.100   N110.B83.100
125 50 220 178 138x110 105x75 11 46 N100.B83.125 N120.B83.125 N110.B83.125
160 50 300 214 138x110 105x75 11 48 N100.B83.160 N120.B83.160 N110.B83.160
200 50 450 255 138x110 105x75 11 52 N100.B83.200 N120.B83.200 N110.B83.200
load capacity (kg) 150 - 450 kg

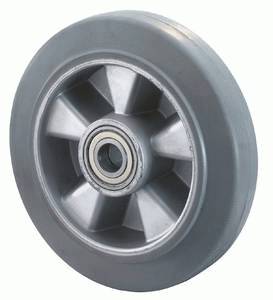

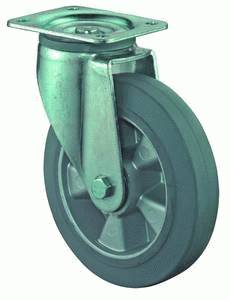

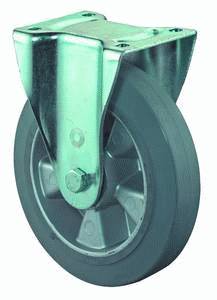

Tugevdatud ratas

Veerepind
Hall elastne rehv
Velg
Alumiinium
Laager
Kuullaager
Rubber wheel
Kataloogi leht: 126


Tugevdatud ratas
swivel castor swivel castor with brake fixed castor

Kirjeldus

  • Lehtterasest kahvel, tsink-kroom kate
  • Kaherealine kuullaager pöördpeas
  • Tugevdatud versioon

Mudel

  • pöörlev ratas
  • pöörlev ratas piduriga
  • kinnitatud ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
80 30 150 112 105x85 80x60 9 38 N100.B10.081 N120.B10.081 N110.B10.081
100 45 500 148 138x109 105x75 11 48 N100.B10.102   N110.B10.102
125 45 400 161 135x110 105x80 11 45 N100.B10.125 N120.B10.125 N110.B10.125
125 45 600 178 138x110 105x75 11 46 N100.B10.127 N120.B10.127 N110.B10.127
150 45 400 195 135x110 105x80 11 45 N100.B10.150 N120.B10.150 N110.B10.150
150 45 600 209 138x110 105x75 11 48 N100.B10.151 N120.B10.151 N110.B10.151
200 45 400 235 135x110 105x80 11 57 N100.B10.200 N120.B10.200 N110.B10.200
200 50 600 255 138x110 105x75 11 52 N100.B10.201 N120.B10.201 N110.B10.201
250 50 600 295 138x110 105x75 11 55 N100.B10.251 N120.B10.251 N110.B10.251
load capacity (kg) 150 - 600 kg

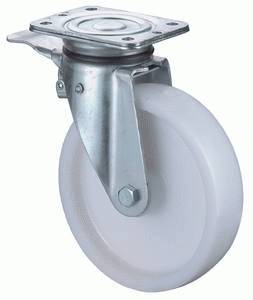

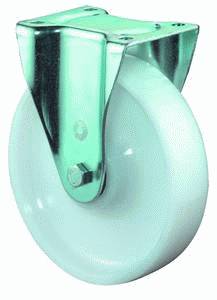

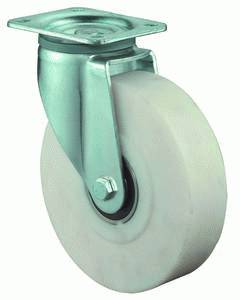

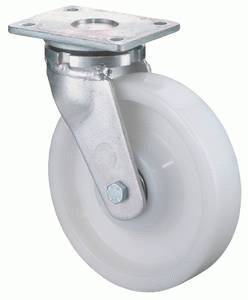

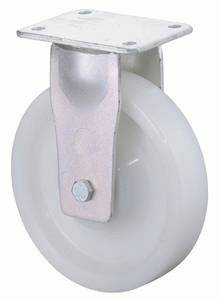

Tugevdatud ratas

Veerepind

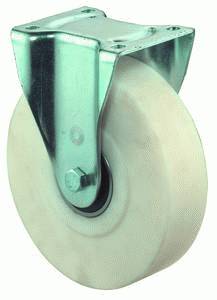

Polüpropileen
Velg
Polüpropüleen
Laager
Rull-laager
Transport castor
Kataloogi leht: 127

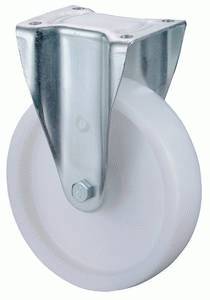

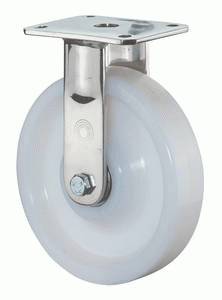

Tugevdatud ratas
swivel castor swivel castor with brake fixed castor

Kirjeldus

  • Lehtterasest kahvel, tsink-kroom kate
  • Kaherealine kuullaager pöördpeas
  • Tugevdatud versioon

Mudel

  • pöörlev ratas
  • pöörlev ratas piduriga
  • kinnitatud ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
80 30 150 112 105x85 80x60 9 38 N100.B15.080 N120.B15.080 N110.B15.080
100 35 400 132 105x85 80x60 11 36 LBS500.B15.100 LBS520.B15.100 LBS510.B15.100
100 50 500 148 138x109 105x75 11 48 N100.B15.102   N110.B15.102
125 40 300 163 135x110 105x80 11 45 N100.B15.125 N120.B15.125 N110.B15.125
125 45 600 178 138x110 105x75 11 46 N100.B15.126 N120.B15.126 N110.B15.126
150 40 400 195 135x110 105x80 11 45 N100.B15.151 N120.B15.151 N110.B15.151
150 40 600 209 138x110 105x75 11 48 N100.B15.152 N120.B15.152 N110.B15.152
200 50 450 235 135x110 105x80 11 57 N100.B15.201 N120.B15.201 N110.B15.201
200 50 600 255 138x110 105x75 11 52 N100.B15.202 N120.B15.202 N110.B15.202
250 60 600 295 135x110 105x75 11 55 N100.B15.250 N120.B15.250 N110.B15.250
load capacity (kg) 150-600 kg

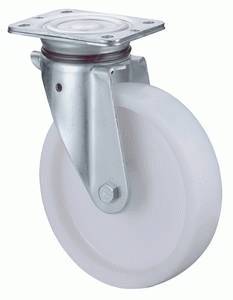

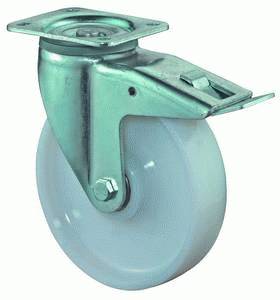

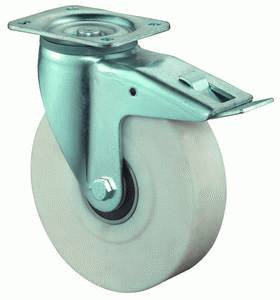

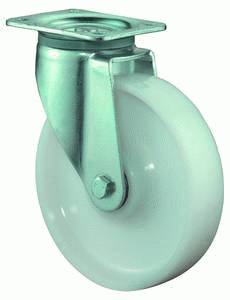

Tugevdatud ratas

Veerpind

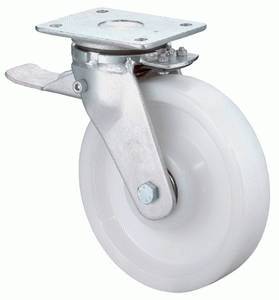

Polüamiid
Velg
Polüamiid
Laager
Kuullaager
Plastic wheel
Kataloogi leht: 127


Tugevdatud ratas
swivel castor swivel castor with brake fixed castor

Kirjeldus

  • Lehtterasest kahvel, tsink-kroom kate
  • Kaherealine kuullaager pöördpeas
  • Tugevdatud versioon

Mudel

  • pöörlev ratas
  • pöörlev ratas piduriga
  • kinnitatud ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
80 40 250 127 105x85 80x60 8 42 N100.B90.081 N120.B90.081 N110.B90.081
100 40 280 137 105x85 80x60 8 42 N100.B90.102 N120.B90.102 N110.B90.102
125 50 450 178 138x110 105x75 11 46 N100.B90.129 N120.B90.129 N110.B90.129
150 50 550 209 138x110 105x75 11 48 N100.B90.154 N120.B90.154 N110.B90.154
160 50 600 205 138x110 105x75 11 48 N100.B90.163 N120.B90.163 N110.B90.163
200 50 600 255 138x110 105x75 11 52 N100.B90.203 N120.B90.203 N110.B90.203
250 50 600 295 138x110 105x75 11 55 N100.B90.252 N120.B90.252 N110.B90.252
load capacity (kg) 250 - 600 kg

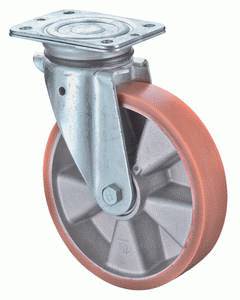

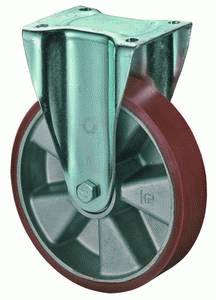

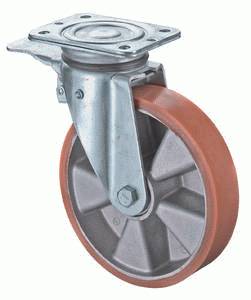

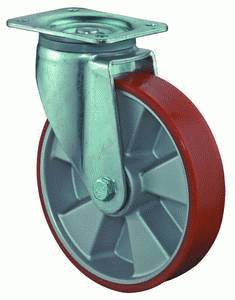

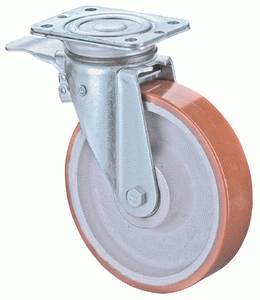

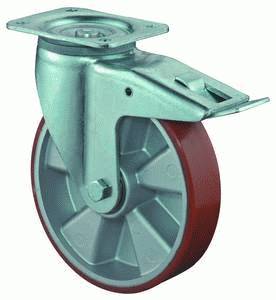

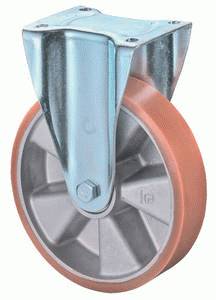

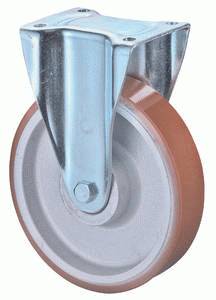

Tugevdatud ratas

Veerepind

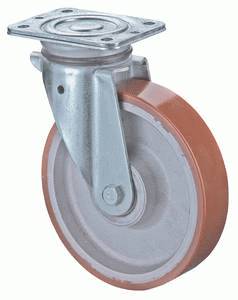

Valatud polüuretaan,  Shore´i kõvadus 95+/-3 A
Velg
Alumiinium
Laager
Kuullaager
Polyurethane wheel
Kataloogi leht: 128


Tugevdatud ratas
Heavy duty castor Heavy duty castor Heavy duty castor

Kirjeldus

  • Lehtterasest kahvel, tsink-kroom kate
  • Kaherealine kuullaager pöördpeas
  • Tugevdatud versioon

Mudel

  • pöörlev ratas
  • pöörlev ratas piduriga
  • kinnitatud ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
125 40 250 178 138x110 105x75 11 46 N100.B91.126 N120.B91.126 N110.B91.126
160 50 500 214 138x110 105x75 11 48 N100.B91.162 N120.B91.162 N110.B91.162
200 50 600 255 138x110 105x75 11 52 N100.B91.203 N120.B91.203 N110.B91.203
load capacity (kg) 250 - 600 kg

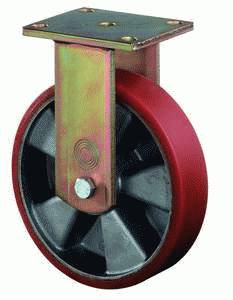

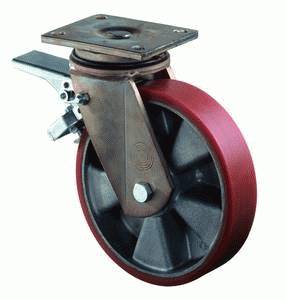

Tugevdatud ratas

Veerepind

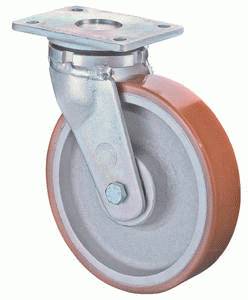

Valatud polüuretaan,  Shore´i kõvadus 78 A
Velg
Alumiinium
Laager
Kuullaager
Heavy duty castor
Kataloogi leht: 128


Tugevdatud ratas
swivel castorswivel castor with brake  fixed castor

Kirjeldus

  • Lehtterasest kahvel, tsink-kroom kate
  • Kaherealine kuullaager pöördpeas
  • Tugevdatud versioon

Mudel

  • pöörlev ratas
  • pöörlev ratas piduriga
  • kinnitatud ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
82 70 650 137 175x140 140x105 15 45 N100.C10.083 N120.C10.083 N110.C10.083
100 30 300 137 105x85 80x60 8 42 N100.C10.101 N120.C10.101 N110.C10.101
100 50 400 148 138x110 105x75 11 44 N100.C10.103   N110.C10.103
125 50 550 178 138x110 105x75 11 46 N100.C10.129 N120.C10.129 N110.C10.129
150 40 450 195 138x110 105x75 11 45 N100.C10.152 N120.C10.152 N110.C10.152
150 50 600 209 138x110 105x75 11 48 N100.C10.154 N120.C10.154 N110.C10.154
200 40 450 235 138x110 105x80 11 57 N100.C10.201 N120.C10.201 N110.C10.201
200 50 600 255 138x110 105x75 11 52 N100.C10.203 N120.C10.203 N110.C10.203
250 50 600 295 138x110 105x75 11 55 N100.C10.251 N120.C10.251 N110.C10.251
load capacity (kg) 300 - 650 kg

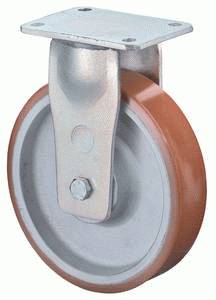

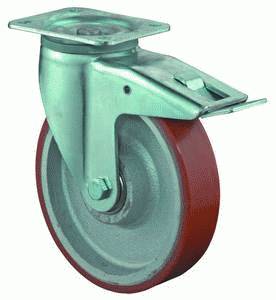

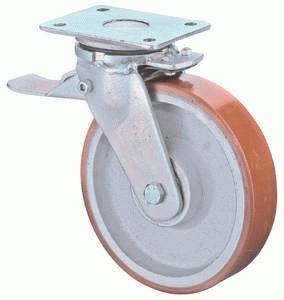

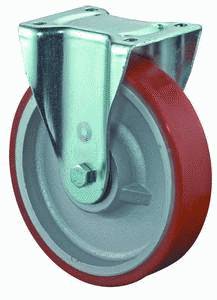

Tugevdatud ratas

Veerepind

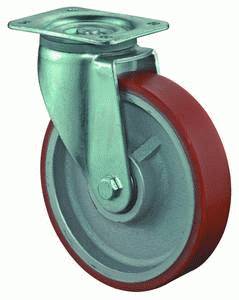

Valatud polüuretaan, Shore´i kõvadus 95+/-3 A
Velg
Valatud malm
Laager
Kuullaager
Polyurethane wheel
Kataloogi leht: 129


Tugevdatud ratas
swivel castor swivel castor with brake fixed castor

Kirjeldus

  • Lehtterasest kahvel, tsink-kroom kate
  • Kaherealine kuullaager pöördpeas
  • Tugevdatud versioon

Mudel

  • pöörlev ratas
  • pöörlev ratas piduriga
  • kinnitatud ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
100 40 300 153 138x110 105x75 11 44 N100.C11.101 N120.C11.101 N110.C11.101
125 50 400 178 138x110 105x75 11 46 N100.C11.126 N120.C11.126 N110.C11.126
150 50 500 209 138x110 105x75 11 48 N100.C11.151 N120.C11.151 N110.C11.151
200 50 600 255 138x110 105x75 11 52 N100.C11.201 N120.C11.201 N110.C11.201
250 50 600 305 135x110 105x80 12 70 N100.C11.251 N120.C11.251 N110.C11.251
load capacity (kg) 300 - 600 kg
Tugevdatud ratas

Veerepind
Valatud polüuretaan, Shore´i kõvadus 75 A
Velg
Valatud malm
Laager
Kuullaager
Polyurethane wheel
Kataloogi leht: 129


Tugevdatud ratas
swivel castor swivel castor with brake fixed castor

Kirjeldus

  • Lehtterasest kahvel, tsink-kroom kate
  • Kaherealine kuullaager pöördpeas
  • Tugevdatud versioon

Mudel

  • pöörlev ratas
  • pöörlev ratas piduriga
  • kinnitatud ratas
wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
125 50 700 178 135x110 104x78 11 47 L600.B15.125 L620.B15.125 L610.B15.125
150 50 700 200 135x110 104x78 11 50 L600.B15.150 L620.B15.150 L610.B15.150
150 48 900 200 135x110 104x78 11 50 L600.B15.151 L620.B15.151 L610.B15.151
200 50 1000 245 135x110 104x78 11 50 L600.B15.200 L620.B15.200 L610.B15.200
200 50 1200 245 135x110 104x78 11 50 L600.B15.201 L620.B15.201 L610.B15.201
250 60 1400 290 135x110 104x78 11 58 L600.B15.250 L620.B15.250 L610.B15.250
load capacity (kg) 700 - 1400 kg
Tugevdatud ratas

Veerpind
Polüamiid
Velg
Polüamiid
Laager
Kuullaager
Plastic wheel
Kataloogi leht: 130



Tugevdatud ratas
swivel castor swivel castor with brake fixed castor

Description

fork in steel plate, chrome-zink galvanised,
double row ball collar in fork head

Mudel

  • pöörlev ratas
  • pöörlev ratas piduriga
  • kinnitatud ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
125 55 1000 178 135x110 104x78 11 47 L600.B16.125 L620.B16.125 L610.B16.125
150 55 1000 200 135x110 104x78 11 50 L600.B16.150 L620.B16.150 L610.B16.150
200 55 1250 245 135x110 104x78 11 50 L600.B16.200 L620.B16.200 L610.B16.200
250 80 1500 290 135x110 104x78 11 58 L600.B16.250 L620.B16.250 L610.B16.250
load capacity (kg) 1000 - 1500 kg
Tugevdatud ratas

Veerepind
Valatud polüamiid
Velg
Valatud polüamiid
Laager
Kuullaager

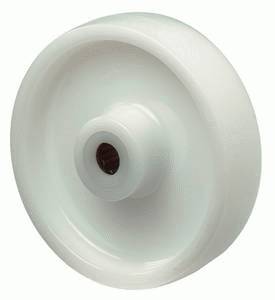

Polyamide wheel
Kataloogi leht: 130


Tugevdatud ratas
swivel castor swivel castor with brake fixed castor

Kirjeldus

  • Lehtterasest kahvel, tsink-kroom kate
  • Kaherealine kuullaager pöördpeas
  • Tugevdatud versioon

Mudel

  • pöörlev ratas
  • pöörlev ratas piduriga
  • kinnitatud ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
125 50 220 178 135x110 104x78 11 47 L600.B80.125 L620.B80.125 L610.B80.125
160 50 300 205 135x110 104x78 11 50 L600.B80.160 L620.B80.160 L610.B80.160
200 50 450 245 135x110 104x78 11 50 L600.B80.200 L620.B80.200 L610.B80.200
250 50 550 290 135x110 104x78 11 58 L600.B80.250 L620.B80.250 L610.B80.250
load capacity (kg) 220 - 550 kg
Tugevdatud ratas

Veerepind
Must elastne rehv
Velg
Alumiinium
Laager
Kuullaager
Transport castor
Kataloogi leht: 131


Tugevdatud ratas
swivel castor swivel castor with brake fixed castor

Kirjeldus

  • Lehtterasest kahvel, tsink-kroom kate
  • Kaherealine kuullaager pöördpeas
  • Tugevdatud versioon

Mudel

  • pöörlev ratas
  • pöörlev ratas piduriga
  • kinnitatud ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
125 50 220 178 135x110 104x78 11 47 L600.B83.125 L620.B83.125 L610.B83.125
160 50 300 205 135x110 104x78 11 53 L600.B83.160 L620.B83.160 L610.B83.160
200 50 450 245 135x110 104x78 11 50 L600.B83.200 L620.B83.200 L610.B83.200
load capacity (kg) 220 - 450 kg
Tugevdatud ratas

Veerepind
Hall elastne rehv
Velg
Alumiinium
Laager
Kuullaager
Rubber wheel
Kataloogi leht: 131


Tugevdatud ratas
swivel castor swivel castor with brake fixed castor

Kirjeldus

  • Lehtterasest kahvel, tsink-kroom kate
  • Kaherealine kuullaager pöördpeas
  • Tugevdatud versioon

Mudel

  • pöörlev ratas
  • pöörlev ratas piduriga
  • kinnitatud ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
125 50 275 178 135x110 104x78 11 47 L600.B81.125 L620.B81.125 L610.B81.125
150 50 350 200 135x110 104x78 11 50 L600.B81.150 L620.B81.150 L610.B81.150
200 50 450 245 135x110 104x78 11 50 L600.B81.200 L620.B81.200 L610.B81.200
250 50 500 290 135x110 104x78 11 58 L600.B81.250 L620.B81.250 L610.B81.250
load capacity (kg) 275 - 500 kg
Tugevdatud ratas

Veerepind
Must elastne rehv
Velg
Valatud malm
Laager
Kuullaager
Rubber wheel
Kataloogi leht: 132



Tugevdatud ratas
swivel castor swivel castor with brake fixed castor

Kirjeldus

  • Lehtterasest kahvel, tsink-kroom kate
  • Kaherealine kuullaager pöördpeas
  • Tugevdatud versioon

Mudel

  • pöörlev ratas
  • pöörlev ratas piduriga
  • kinnitatud ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
125 50 450 178 135x110 104x78 11 47 L600.B90.125 L620.B90.125 L610.B90.125
150 50 550 200 135x110 104x78 11 50 L600.B90.150 L620.B90.150 L610.B90.150
200 50 800 245 135x110 104x78 11 50 L600.B90.200 L620.B90.200 L610.B90.200
250 50 1000 290 135x110 104x78 11 58 L600.B90.250 L620.B90.250 L610.B90.250
load capacity (kg) 450 - 1000 kg
Tugevdatud ratas

Veerepind
Valatud polüuretaan,  Shore´i kõvadus 95+/-3 A
Velg
Alumiinium
Laager
Kuullaager
Polyurethane wheel
Kataloogi leht: 132


Tugevdatud ratas
swivel castor swivel castor with brake fixed castor

Kirjeldus

  • Lehtterasest kahvel, tsink-kroom kate
  • Kaherealine kuullaager pöördpeas
  • Tugevdatud versioon

Mudel

  • pöörlev ratas
  • pöörlev ratas piduriga
  • kinnitatud ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
125 50 550 178 135x110 104x78 11 47 L600.C10.125 L620.C10.125 L610.C10.125
150 50 800 200 135x110 104x78 11 50 L600.C10.150 L620.C10.150 L610.C10.150
200 50 1000 245 135x110 104x78 11 50 L600.C10.200 L620.C10.200 L610.C10.200
250 50 1200 290 135x110 104x78 11 58 L600.C10.250 L620.C10.250 L610.C10.250
load capacity (kg) 550 - 1200 kg
Tugevdatud ratas

Veerepind
Valatud polüuretaan, Shore´i kõvadus 95+/-3 A
Velg
Valatud malm
Laager
Kuullaager
Polyurethane wheel
Kataloogi leht: 133


Tugevdatud ratas
swivel castor swivel castor fixed castor

Kirjeldus

  • Terasest keevitatud kahvel
  • Tsingitud
  • Kuullaager pöördpeas

Mudel

  • pöörlev ratas
  • pöörlev ratas piduriga
  • kinnitatud ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
80 30 150 140 100x85 80x60 10 35 RR100.B15.080 RR120.B15.080 RR110.B15.080
85 85 1200 125 190x175 150x135 16 57 RR100.B15.085   RR110.B15.085
100 30 175 150 100x85 80x60 10 35 RR100.B15.100 RR120.B15.100 RR110.B15.100
100 37 400 145 138x110 105x80 11 35 RR100.B15.101 RR120.B15.101 RR110.B15.101
125 45 550 170 138x110 105x80 11 50 RR100.B15.125 RR120.B15.125 RR110.B15.125
150 48 800 200 138x110 105x80 11 60 RR100.B15.150 RR120.B15.150 RR110.B15.150
175 50 500 235 138x110 105x80 11 60 RR100.B15.175 RR120.B15.175 RR110.B15.175
200 50 1200 245 138x110 105x80 11 60 RR100.B15.200 RR120.B15.200 RR110.B15.200
250 60 1400 295 138x110 105x80 11 70 RR100.B15.250 RR120.B15.250 RR110.B15.250
250 60 1400 305 175x140 140x105 14 75 RR100.B15.251 RR120.B15.251 RR110.B15.251
300 60 2000 355 175x140 140x105 14 75 RR100.B15.300 RR120.B15.300 RR110.B15.300
load capacity (kg)150-2000 kg
Tugevdatud ratas

Veerpind
Polüamiid
Velg
Polüamiid
Laager
Kuullaager
Plastic wheel
Kataloogi leht: 134


Tugevdatud ratas
swivel castor swivel castor with brake fixed castor

Kirjeldus

  • Terasest keevitatud kahvel
  • Tsingitud
  • Kuullaager pöördpeas

Mudel

  • pöörlev ratas
  • pöörlev ratas piduriga
  • kinnitatud ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
100 55 900 145 138x110 105x75/80 11 35 RR100.B16.100 RR120.B16.100 RR110.B16.100
125 55 900 170 138x110 105x75/80 11 50 RR100.B16.125 RR120.B16.125 RR110.B16.125
150 55 900 200 138x110 105x75/80 11 60 RR100.B16.150 RR120.B16.150 RR110.B16.150
150 80 2000 212 175x140 140x105 12 55 RR100.B16.151 RR120.B16.151 RR110.B16.151
150 80 3000 212 200x160 160x120 16 61 RR100.B16.152 RR120.B16.152 RR110.B16.152
200 55 1500 245 138x110 105x75/80 11 60 RR100.B16.200 RR120.B16.200 RR110.B16.200
200 80 2000 264 175x140 140x105 12 67 RR100.B16.201 RR120.B16.201 RR110.B16.201
200 80 4500 264 200x160 160x120 16 65 RR100.B16.202 RR120.B16.202 RR110.B16.202
250 80 5000 314 200x160 160x120 16 80 RR100.B16.250 RR120.B16.250 RR110.B16.250
250 100 7500 330 255x200 210x160 16 65 RR100.B16.251 RR120.B16.251 RR110.B16.251
300 80 5000 375 200x160 160x120 16 75 RR100.B16.300 RR120.B16.300 RR110.B16.300
300 100 7500 395 255x200 210x160 16 85 RR100.B16.301 RR120.B16.301 RR110.B16.301
400 80 5000 475 200x160 160x120 16 70 RR100.B16.400 RR120.B16.400 RR110.B16.400
400 100 7500 495 255x200 210x160 16 85 RR100.B16.401 RR120.B16.401 RR110.B16.401
load capacity (kg)900-7500 kg
Tugevdatud ratas

Veerepind
Valatud polüamiid
Velg
Valatud polüamiid
Laager
Kuullaager
Polyamide wheel
Kataloogi leht: 134


Tugevdatud ratas
swivel castor swivel castor with brake fixed castor

Kirjeldus

  • Terasest keevitatud kahvel
  • Tsingitud
  • Kuullaager pöördpeas

Mudel

  • pöörlev ratas
  • pöörlev ratas piduriga
  • kinnitatud ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
100 40 150 150 100x85 80x60 10 35 RR100.B80.100 RR120.B80.100 RR110.B80.100
100 40 150 150 138x110 105x75/80 11 35 RR100.B80.101 RR120.B80.101 RR110.B80.101
125 50 200 170 138x110 105x75/80 11 50 RR100.B80.125 RR120.B80.125 RR110.B80.125
160 50 350 200 138x110 105x75/80 11 60 RR100.B80.160 RR120.B80.160 RR110.B80.160
200 50 450 245 138x110 105x75/80 11 60 RR100.B80.200 RR120.B80.200 RR110.B80.200
200 76 500 264 175x140 140x105 12 67 RR100.B80.201 RR120.B80.201 RR110.B80.201
250 50 550 295 138x110 105x75/80 11 70 RR100.B80.250 RR120.B80.250 RR110.B80.250
250 63 580 305 175x140 140x105 14 75 RR100.B80.251 RR120.B80.251 RR110.B80.251
300 60 700 355 175x140 140x105 14 75 RR100.B80.300 RR120.B80.300 RR110.B80.300
load capacity (kg)150 - 700 kg
Tugevdatud ratas

Veerepind
Must elastne rehv
Velg
Alumiinium
Laager
Kuullaager
Transport castor
Kataloogi leht: 135


Tugevdatud ratas
swivel castor swivel castor with brake fixed castor

Kirjeldus

  • Terasest keevitatud kahvel
  • Tsingitud
  • Kuullaager pöördpeas

Mudel

  • pöörlev ratas
  • pöörlev ratas piduriga
  • kinnitatud ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
100 38 150 145 100x85 80x60 10 35 RR100.B81.100 RR120.B81.100 RR110.B81.100
100 50 210 150 138x110 105x75/80 11 35 RR100.B81.101 RR120.B81.101 RR110.B81.101
125 50 275 170 138x110 105x75/80 11 50 RR100.B81.125 RR120.B81.125 RR110.B81.125
150 50 350 195 138x110 105x75/80 11 60 RR100.B81.150 RR120.B81.150 RR110.B81.150
150 50 350 212 175x140 140x105 12 55 RR100.B81.151 RR120.B81.151 RR110.B81.151
150 75 425 212 200x160 160x120 16 61 RR100.B81.152 RR120.B81.152 RR110.B81.152
200 50 450 245 138x110 105x75/80 11 60 RR100.B81.200 RR120.B81.200 RR110.B81.200
200 50 450 264 175x140 140x105 12 67 RR100.B81.201 RR120.B81.201 RR110.B81.201
200 75 550 264 200x160 160x120 16 65 RR100.B81.202 RR120.B81.202 RR110.B81.202
200 100 675 280 255x200 210x160 16 65 RR100.B81.203 RR120.B81.203 RR110.B81.203
250 50 500 295 138x110 105x75/80 11 70 RR100.B81.250 RR120.B81.250 RR110.B81.250
250 75 750 305 175x140 140x105 14 75 RR100.B81.251 RR120.B81.251 RR110.B81.251
250 75 750 314 200x160 160x120 16 80 RR100.B81.252 RR120.B81.252 RR110.B81.252
250 100 950 330 255x200 210x160 16 70 RR100.B81.253 RR120.B81.253 RR110.B81.253
300 75 850 355 175x140 140x105 14 75 RR100.B81.300 RR120.B81.300 RR110.B81.300
300 75 850 375 200x160 160x120 16 75 RR100.B81.301 RR120.B81.301 RR110.B81.301
400 75 1200 475 200x160 160x120 16 70 RR100.B81.400 RR120.B81.400 RR110.B81.400
400 100 1500 495 255x200 210x160 16 85 RR100.B81.401 RR120.B81.401 RR110.B81.401
load capacity (kg)150-1500 kg
Tugevdatud ratas

Veerepind
Must elastne rehv
Velg
Valatud malm
Laager
Kuullaager
Rubber wheel
Kataloogi leht: 135


Tugevdatud ratas
swivel castor swivel castor with brake fixed castor

Kirjeldus

  • Terasest keevitatud kahvel
  • Tsingitud
  • Kuullaager pöördpeas

Mudel

  • pöörlev ratas
  • pöörlev ratas piduriga
  • kinnitatud ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
100 40 200 150 100x85 80x60 10 35 RR100.B90.100 RR120.B90.100 RR110.B90.100
100 30 200 145 135x110 105x80 11 35 RR100.B90.101 RR120.B90.101 RR110.B90.101
125 50 450 170 138x110 105x75/80 11 50 RR100.B90.125 RR120.B90.125 RR110.B90.125
150 50 550 195 138x110 105x75/80 11 60 RR100.B90.150 RR120.B90.150 RR110.B90.150
160 50 600 200 138x110 105x75/80 11 60 RR100.B90.160 RR120.B90.160 RR110.B90.160
200 50 800 245 138x110 105x75/80 11 60 RR100.B90.200 RR120.B90.200 RR110.B90.200
250 50 1000 295 138x110 105x75/80 11 70 RR100.B90.250 RR120.B90.250 RR110.B90.250
300 76 1800 355 175x140 140x105 14 75 RR100.B90.300 RR120.B90.300 RR110.B90.300
load capacity (kg)200-1800 kg
Tugevdatud ratas

Veerepind
Valatud polüuretaan,  Shore´i kõvadus 95+/-3 A
Velg
Alumiinium
Laager
Kuullaager
Polyurethane wheel
Kataloogi leht: 135


Tugevdatud ratas
Heavy duty castor Heavy duty castor Heavy duty castor

Kirjeldus

  • Terasest keevitatud kahvel
  • Tsingitud
  • Kuullaager pöördpeas

Mudel

  • pöörlev ratas
  • pöörlev ratas piduriga
  • kinnitatud ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
100 40 180 150 100x85 80x60 10 35 RR100.B91.100 RR120.B91.100 RR110.B91.100
125 40 250 170 138x110 105x75/80 11 50 RR100.B91.125 RR120.B91.125 RR110.B91.125
160 50 450 200 138x110 105x75/80 11 60 RR100.B91.160 RR120.B91.160 RR110.B91.160
200 50 750 245 138x110 105x75/80 11 60 RR100.B91.200 RR120.B91.200 RR110.B91.200
load capacity (kg)180 - 750 kg
Tugevdatud ratas

Veerepind
Valatud polüuretaan,  Shore´i kõvadus 78 A
Velg
Alumiinium
Laager
Kuullaager
Heavy duty castor
Kataloogi leht: 135


Tugevdatud ratas
swivel castor swivel castor with brake fixed castor

Kirjeldus

  • Terasest keevitatud kahvel
  • Tsingitud
  • Kuullaager pöördpeas

Mudel

  • pöörlev ratas
  • pöörlev ratas piduriga
  • kinnitatud ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
80 36 250 140 100x85 80x60 10 35 RR100.C10.080 RR120.C10.080 RR110.C10.080
85 80 800 125 190x175 150x135 16 57 RR100.C10.085   RR110.C10.085
100 38 295 150 100x85 80x60 11 35 RR100.C10.100 RR120.C10.100 RR110.C10.100
100 50 400 145 138x110 105x75/80 11 35 RR100.C10.101 RR120.C10.101 RR110.C10.101
125 50 550 170 138x110 105x75/80 11 50 RR100.C10.125 RR120.C10.125 RR110.C10.125
150 50 800 195 138x110 105x75/80 11 60 RR100.C10.150 RR120.C10.150 RR110.C10.150
160 50 850 200 138x110 105x75/80 11 60 RR100.C10.160 RR120.C10.160 RR110.C10.160
200 50 1000 245 138x110 105x75/80 11 60 RR100.C10.200 RR120.C10.200 RR110.C10.200
200 50 1000 264 175x140 140x105 12 67 RR100.C10.201 RR120.C10.201 RR110.C10.201
200 80 1400 264 200x160 160x120 16 65 RR100.C10.202 RR120.C10.202 RR110.C10.202
200 100 1800 280 255x200 210x160 16 65 RR100.C10.203 RR120.C10.203 RR110.C10.203
250 50 1300 295 138x110 105x75/80 11 70 RR100.C10.250 RR120.C10.250 RR110.C10.250
250 75 1600 305 175x140 140x105 14 75 RR100.C10.251 RR120.C10.251 RR110.C10.251
250 75 1600 314 200x160 160x120 16 80 RR100.C10.252 RR120.C10.252 RR110.C10.252
250 100 2200 330 255x200 210x160 16 70 RR100.C10.253 RR120.C10.253 RR110.C10.253
300 75 2000 355 175x140 140x105 14 75 RR100.C10.300 RR120.C10.300 RR110.C10.300
300 75 2000 375 200x160 160x120 16 75 RR100.C10.301 RR120.C10.301 RR110.C10.301
300 100 2800 395 255x200 210x160 16 85 RR100.C10.302 RR120.C10.302 RR110.C10.302
400 75 2500 475 200x160 160x120 16 75 RR100.C10.400 RR120.C10.400 RR110.C10.400
400 100 3500 495 255x200 210x160 16 85 RR100.C10.401 RR120.C10.401 RR110.C10.401
load capacity (kg)250-3500 kg
Tugevdatud ratas

Veerepind
Valatud polüuretaan, Shore´i kõvadus 95+/-3 A
Velg
Valatud malm
Laager
Kuullaager
Polyurethane wheel
Kataloogi leht: 136


Tugevdatud ratas
Polyurethane wheel Polyurethane wheel Polyurethane wheel

Kirjeldus

  • Terasest keevitatud kahvel
  • Tsingitud
  • Kuullaager pöördpeas

Mudel

  • pöörlev ratas
  • pöörlev ratas piduriga
  • kinnitatud ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
100 40 300 150 100x85 80x60 10 35 RR100.C11.100 RR120.C11.100 RR110.C11.100
100 40 300 145 138x110 105x75/80 11 35 RR100.C11.101 RR120.C11.101 RR110.C11.101
125 50 400 170 138x110 105x75/80 11 50 RR100.C11.125 RR120.C11.125 RR110.C11.125
150 50 500 195 138x110 105x75/80 11 60 RR100.C11.150 RR120.C11.150 RR110.C11.150
200 50 650 245 138x110 105x75/80 11 60 RR100.C11.200 RR120.C11.200 RR110.C11.200
250 50 800 295 138x110 105x75/80 11 70 RR100.C11.250 RR120.C11.250 RR110.C11.250
250 80 950 305 175x140 140x105 14 70 RR100.C11.251 RR120.C11.251 RR110.C11.251
300 80 1250 355 175x140 140x105 14 75 RR100.C11.300 RR120.C11.300 RR110.C11.300
load capacity (kg)300-1250 kg
Tugevdatud ratas

Veerepind
Valatud polüuretaan, Shore´i kõvadus 75 A
Velg
Valatud malm
Laager
Kuullaager
Polyurethane wheel
Kataloogi leht: 136


Tugevdatud ratas
swivel castor swivel castor with brake fixed castor

Kirjeldus

  • Terasest keevitatud kahvel
  • Tsingitud
  • Kuullaager pöördpeas

Mudel

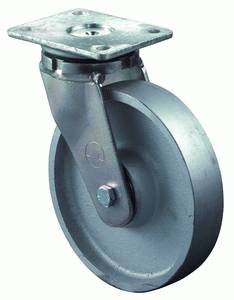

  • pöörlev ratas

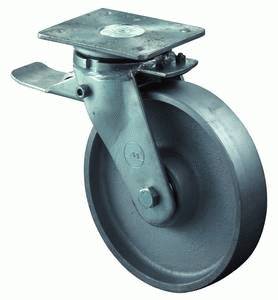

  • pöörlev ratas piduriga

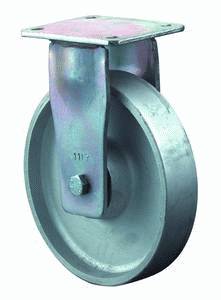

  • kinnitatud ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.
pöörlev ratas
art.num.
pöörlev ratas piduriga
art.num.
kinnitatud ratas
100 38 300 150 100x85 80x60 10 35 RR100.C81.100 RR120.C81.100 RR110.C81.100
100 50 450 145 138x110 105x75/80 11 35 RR100.C81.101 RR120.C81.101 RR110.C81.101
125 50 550 170 138x110 105x75/80 11 50 RR100.C81.125 RR120.C81.125 RR110.C81.125
150 45 600 195 138x110 105x75/80 11 60 RR100.C81.150 RR120.C81.150 RR110.C81.150
150 45 600 212 175x140 140x105 12 55 RR100.C81.151 RR120.C81.151 RR110.C81.151
200 45 1100 245 138x110 105x75/80 11 60 RR100.C81.200 RR120.C81.200 RR110.C81.200
200 45 1100 264 175x140 140x105 12 67 RR100.C81.201 RR120.C81.201 RR110.C81.201
250 54 1400 295 138x110 105x75/80 11 70 RR100.C81.250 RR120.C81.250 RR110.C81.250
load capacity (kg)300-1400 kg
Tugevdatud ratas

Veerepind
Valatud malm
Velg
Valatud malm
Laager
Kuullaager

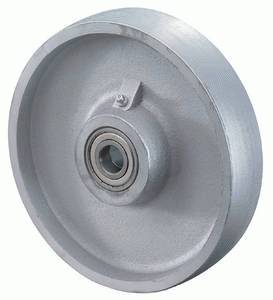

Cast wheel
Kataloogi leht: 136
