Teras rullikud

Bearing types

Conveyor roller bearing
Plastic bearing liner, grey with single row ball bearing

Payload max. 5 kg/bearing at ø 20 mm
Payload max. 7 kg/bearing at ø 30 and 40 mm

external cylinder Ø in mm

blank steel cylinder	art.num.
20x1,0	101
30x1,0	111
40x1,5	121

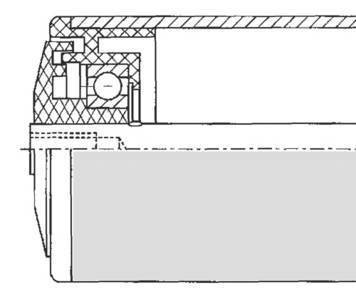

Conveyor roller bearing
Plastic bearing liner, blue with dual row ball bearing

Payload max. 10 kg/bearing

external cylinder Ø in mm

blank steel cylinder	art.num.
50X1,5	131

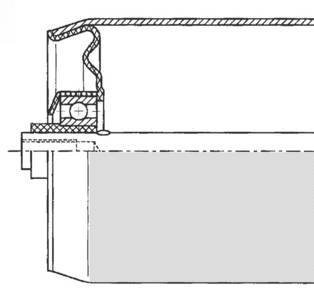

Conveyor roller bearing
Sheet Steel bearing liner, galvanised with single row ball bearing

Payload 80 kg/bearing

external cylinder Ø in mm

blank steel cylinder	art.num.
40X1,5	141
50X1,5	151
50X2,0	161
60X2,0	171

Axle types

External thread

Axles-Ø (mm)	art.num.
6 mm	A 6
8 mm	A 8
10 mm	A 10
12 mm	A 12

Internal thread

Axles-Ø (mm)	art.num.
10 mm	C 10
12 mm	C 12

Flat axle end

Axles-Ø (mm)	art.num.
6 mm	D 6
8 mm	D 8
10 mm	D 10
12 mm	D 12

Spanner flat

Axles-Ø (mm)	art.num.
10 mm	E 10

Spring axle

Axles-Ø (mm)	art.num.
6 mm	F 6
8 mm	F 8
10 mm	F 10

Kataloogi leht: 150

Bearing types

Conveyor roller bearing
Sheet Steel bearing liner, galvanised with single row ball bearing and plastic boss

Payload max. 120 kg/bearing

external cylinder Ø in mm

blank steel cylinder	art.num.
50X1,5	181
50X2,0	191
60X2,0	201
80X2,0	211

Conveyor roller bearing
Plastic bearing liner, blue with heat seal and ball bearing

Payload 80 kg/bearing

external cylinder Ø in mm

blank steel cylinder	art.num.
80x2,0	251
60x2,0	241
50x2,0	231
50x1,5	221

Conveyor roller bearing
Sheet Steel bearing liner with dual heat seal and grooved ball bearing, 6204

Payload max. 250 kg/bearing

external cylinder Ø in mm

blank steel cylinder	art.num.
89x3,25	281
80x3,0	271
80x2,0	261

Axle types

External thread

Axles-Ø (mm)	art.num.
8 mm	A 8
10 mm	A 10
12 mm	A 12
14 mm	A 14
20 mm	A 20

Stepped axle with external thread

Axles-Ø (mm)	art.num.
20 mm	B 20

Internal thread

Axles-Ø (mm)	art.num.
10 mm	C 10
12 mm	C 12
14 mm	C 14
20 mm	C 20

Flat axle end

Axles-Ø (mm)	art.num.
8 mm	D 8
10 mm	D 10
12 mm	D 12
14 mm	D 14

Spanner flat

Axles-Ø (mm)	art.num.
10 mm	E 10
12 mm	E 12
14 mm	E 14
20 mm	E 20

Spring axle

Axles-Ø (mm)	art.num.
8 mm	F 8
10 mm	F 10
12 mm	F 12

Kataloogi leht: 151

Bearing types

Conveyor roller bearing
Plastic bearing liner, grey with single row ball bearing

Payload max. 5 kg/bearing at ø 20 mm
Payload max. 7 kg/bearing at ø 30 and 40 mm

external cylinder Ø in mm

zinc plated steel cylinder	art.num.
30x1,0	112
40x1,5	122
20x1,0	102

Conveyor roller bearing
Plastic bearing liner, blue with dual row ball bearing

Payload max. 10 kg/bearing

external cylinder Ø in mm

zinc plated steel cylinder	art.num.
50x1,5	132

Conveyor roller bearing
Sheet Steel bearing liner, zinc plated with single row ball bearing

Payload 80 kg/bearing

external cylinder Ø in mm

zinc plated steel cylinder	art.num.
50x1,5	152
40x1,5	142
50x2,0	162
60x2,0	172

Axle types

External thread

Axles-Ø (mm)	art.num.
6 mm	A 6
8 mm	A 8
10 mm	A 10
12 mm	A 12

Internal thread

Axles-Ø (mm)	art.num.
10 mm	C 10
12 mm	C 12

Flat axle end

Axles-Ø (mm)	art.num.
6 mm	D 6
8 mm	D 8
10 mm	D 10
12 mm	D 12

Spanner flat

Axles-Ø (mm)	art.num.
10 mm	E 10

Spring axle

Axles-Ø (mm)	art.num.
6 mm	F 6
8 mm	F 8
10 mm	F 10

Kataloogi leht: 148

Bearing types

Conveyor roller bearing
Sheet Steel bearing liner, galvanised with single row ball bearing and plastic hub

Payload max. 120 kg/bearing

external cylinder Ø in mm

zinc plated steel cylinder	art.num.
50X1,5	182
50X2,0	192
60X2,0	202
80X2,0	212

Conveyor roller bearing
Plastic bearing liner, blue with heat seal and ball bearing

Payload 80 kg/bearing

external cylinder Ø in mm

zinc plated steel cylinder	art.num.
50X1,5	222
50X2,0	232
60X2,0	242
80X2,0	252

Conveyor roller bearing
Sheet Steel bearing liner with dual heat seal and grooved ball bearing, 6204

Payload max. 250 kg/bearing

external cylinder Ø in mm

zinc plated steel cylinder	art.num.
80X2,0	262
80X3,0	272
89X3,25	282

Axle types

External thread

Axles-Ø (mm)	art.num.
8 mm	A 8
10 mm	A 10
12 mm	A 12
14 mm	A 14
20 mm	A 20

Stepped axle with external thread

Axles-Ø (mm)	art.num.
20 mm	B 20

Internal thread

Axles-Ø (mm)	art.num.
10 mm	C 10
12 mm	C 12
14 mm	C 14
20 mm	C 20

Flat axle end

Axles-Ø (mm)	art.num.
8 mm	D 8
10 mm	D 10
12 mm	D 12
14 mm	D 14

Spanner flat

Axles-Ø (mm)	art.num.
10 mm	E 10
12 mm	E 12
14 mm	E 14
20 mm	E 20

Spring axle

Axles-Ø (mm)	art.num.
8 mm	F 8
10 mm	F 10
12 mm	F 12

Kataloogi leht: 153
