Lateral guides

galvanised C-forn, 28 mm wide, on stop bars up to 100 mm high.

 Lateral guides

 		 art.num.
on one side (on outside of curves)		 art.num.
both sides
per 1 m of straight track ZKS.001 ZKS.004
for 90° curves ZKS.002 ZKS.005
for 45° curves ZKS.003 ZKS.006
Kataloogi leht: 180

Lateral guides

galvanised U-forn, 20/70/20 mm, guide height: 60 mm with support rollers -Ø 50 mm.

 Lateral guides

 		 art.num.
on one side (on outside of curves)		 art.num.
both sides
per 1 m of straight track ZKS.007 ZKS.010
for 90° curves ZKS.008 ZKS.011
for 45° curves ZKS.009 ZKS.012
Kataloogi leht: 180

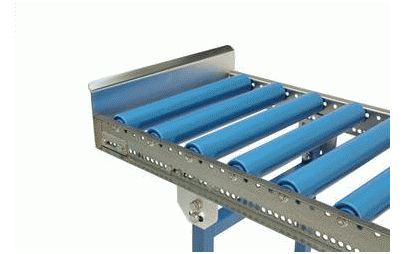

End stop

galvanised sheet steel, screwed at track end

 Lateral guides
lane width (mm)
 		 art.num.

200 ZE.001
300 ZE.002
400 ZE.003
500 ZE.004
600 ZE.005
800 ZE.006
Kataloogi leht: 180

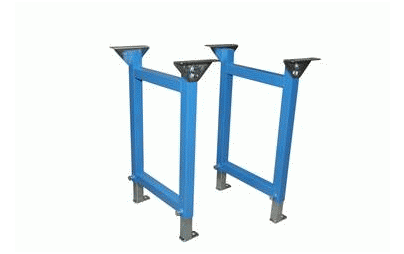

Supports
  • for fixed local assembly.
  • square pipe construction, telescopically extendable, plug-in feet
  • inclinable swivel joints for setting the angle of the track
  • blue RAL 5015 laquering
 Supports
Height to upper edge of conveyor
 		 art.num.
up to 500 mm track width		 art.num.
up to 800 mm track width
275 - 340 mm ZKST.001 ZKST.007
330 - 395 mm ZKST.002 ZKST.008
390 - 570 mm ZKST.003 ZKST.009
550 - 850 mm ZKST.004 ZKST.010
680 - 1100 mm ZKST.005 ZKST.011
870 - 1350 mm ZKST.006 ZKST.012
Kataloogi leht: 180

Supports
  • for local fixed assembly.
  • square pipe (40 x 40 x 2 mm) , telescopically extractable insert feet
  • inclinable swivel joint for setting the track angle
  • blue RAL 5015 laquering
 Supports
Height to upper edge of conveyor
 		 art.num.
up to 600 mm track width		 art.num.
up to 1000 mm track width
275 - 340 mm ZMRST.001 ZMRST.007
330 - 395 mm ZMRST.002 ZMRST.008
390 - 570 mm ZMRST.003 ZMRST.009
550 - 800 mm ZMRST.004 ZMRST.010
680 - 1100 mm ZMRST.005 ZMRST.011
870 - 1350 mm ZMRST.006 ZMRST.012
Kataloogi leht: 182

Lateral guides

galvanised U-forn, 40/80/40 x 3 mm
guide height: 75 with support rollers -Ø 50 mm

 Lateral guides

 		 art.num.
one sided (on outside of curves )		 art.num.
both sided
per 1 m of straight track ZMRS.001 ZMRS.004
for 90° curves ZMRS.002 ZMRS.005
for 45° curves ZMRS.003 ZMRS.006
Kataloogi leht: 182

End stop

galvanised sheet steel
screwed at track end

 End stop
lane width (mm)
 		 art.num.
up to 600 mm track width		 art.num.
up to 1000 mm track width
300 ZMRE.001 ZMRE.009
400 ZMRE.002 ZMRE.010
500 ZMRE.003 ZMRE.011
600 ZMRE.004 ZMRE.012
700 ZMRE.005 ZMRE.013
800 ZMRE.006 ZMRE.014
900 ZMRE.007 ZMRE.015
1000 ZMRE.008 ZMRE.016
Kataloogi leht: 182
