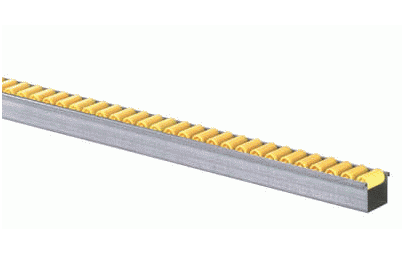

Mini roller tracks with standard rollers D. 13 mm

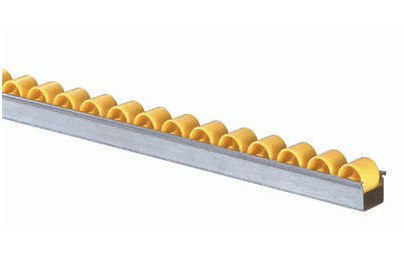

Roller tracks are used mainly for the safe movement of transport boxes and cartons in flow racking. The rollers are made of premium quality, robust, impact resistant thermoplastic. It absorbs no damp and is resistant to acids and leaches. These rollers, on steel axles, are available as standard or as flanged rollers. The roller track frame is cold forned zinc plated steel, 1.5 mm thick. A 13 mm diameter roller has a load capacity of 6 kg, whereas a bundle or package combination should not exceed 15 kg in total weight.

Roller separation distance	art.num.
16 mm	405.000
33 mm	405.001
50 mm	405.002
end stop	405.003

NB: When ordering, please include the required total roller track length. (max. 6500 mm)

Kataloogi leht: 163

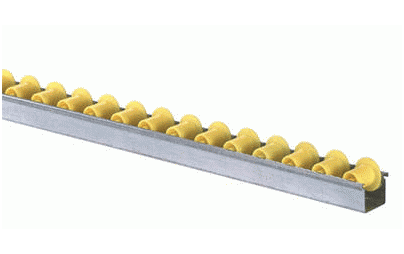

Mini roller tracks with flanged rollers D. 18/28 mm

Roller separation distance	art.num.
33 mm	406.000
50 mm	406.001
66 mm	406.002
end stop	406.003

Please Note: When ordering, please include the required total roller track length. (max. 6500 mm)

Kataloogi leht: 163

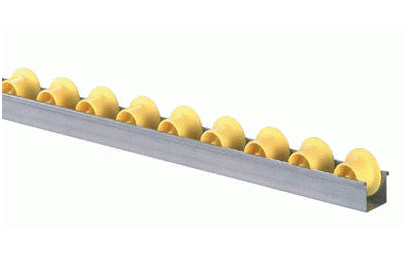

Roller tracks with standard rollers D. 28 mm

A 28 mm diameter roller has a load capacity of 6 kg, whereas a bundle or package combination should not exceed 25 kg in total weight.

Roller separation distance	art.num.
33 mm	415.000
50 mm	415.001
66 mm	415.002
100 mm	415.003
end stop	415.004

available alternative:

Black rollers
Black, highly conductive rollers

Please Note: When ordering, please include the required total roller track length. (max. 6500 mm)

Kataloogi leht: 163

Roller tracks with standard rollers D. 28/41 mm

Roller separation distance	art.num.
50 mm	416.000
66 mm	416.001
83 mm	416.002
100 mm	416.003
end stop	416.004

available alternative:

Black rollers
Black, highly conductive rollers

Please Note: When ordering, please include the required total roller track length. (max. 6500 mm)

Kataloogi leht: 163

Roller tracks with standard rollers D. 30 mm

A 30 mm diameter roller has a load capacity of 12 kg, whereas a bundle or package combination should not exceed 35 kg in total weight.

Roller separation distance	art.num.
33 mm	417.000
50 mm	417.001
66 mm	417.002
100 mm	417.003
end stop	417.004

Please Note: When ordering, please include the required total roller track length. (max. 6500 mm)

Kataloogi leht: 164

Mini roller tracks with flanged rollers D. 30/44 mm

Roller separation distance	art.num.
50 mm	418.000
66 mm	418.001
100 mm	418.002
end stop	418.003

Please Note: When ordering, please include the required total roller track length. (max. 6500 mm)

Kataloogi leht: 164

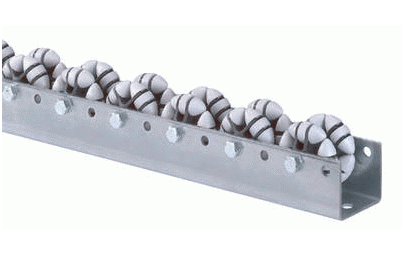

Multi-directional roller tracks

Multi-directional rollers are employed wherever bundles, packages, cartons, boxes or work pieces are turned, sorted, re-directed, commissioned or otherwise moved around. Dimensions and weight of the goods determines the separation distances of rollers and tracks. Goods should not exceed the following individual weights:

D. 50 mm : 100 daN (kg)
D. 60 mm : 200 daN (kg)
D. 80 mm : 400 daN (kg)

The rollers can be used at temperatures of -15°C und +80°C.

multi-directional rollers separation distances	art.num. Ø 50 mm rollers	art.num. Ø 60 mm rollers	art.num. Ø 80 mm rollers
66 mm	410.000	411.000	412.000
100 mm	410.001	411.001	412.001
133 mm	410.003	411.003	412.003
166 mm	410.004	411.004	412.004
end stop	410.002	411.002	412.002
single roller	360.001	360.002	360.003

available alternative: 50 mm diameter rollers can also be supplied in single track forn.
Please Note: When ordering, please include the required track length. (max. 6000 mm)

Kataloogi leht: 164

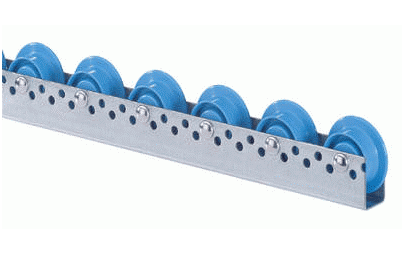

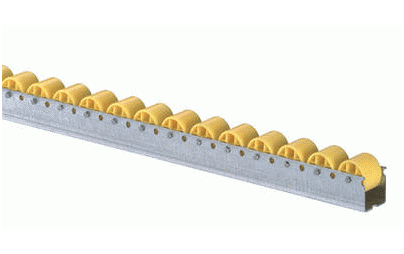

Roller tracks with standard plastic rollers D. 48 mm

eg. Roller tracks are used for:

flow racks
guide tracks
rollerways connecting two work places
packing machines
drive belt guides

We normally supply your desired fixed length. The frame is zinc plated, Wy = 2,2 cm³. When not otherwise ordered, standard rollers are mounted in the lower row of holes whereas flanged rollers are always in the upper row.

Roller separation distance	art.num.
50 mm	421.000
75 mm	421.001
100 mm	421.002
125 mm	421.003
end stop	421.004

available alternative:

Rollers with plain bearings
Plain and ball bearing rollers with a PUR buffer ring.

Please Note: When ordering, please include the required total roller track length. (The length should be divisible by 25 mm.)

Kataloogi leht: 165

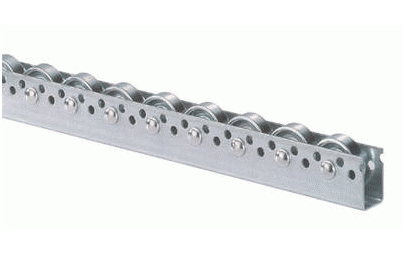

Roller tracks with flanged plastic rollers D. 48/66 mm

Plastic rollers (48 mm), with or without a flange, have a load capacity of 10 daN (kg). Steel rollers (48 mm), with or without a flange, can carry 20 daN (kg).

Roller separation distance	art.num.
75 mm	422.000
100 mm	422.001
125 mm	422.002
150 mm	422.003
end stop	422.004

Please Note: When ordering, please include the required total roller track length. (The length should be divisible by 25 mm.)

Kataloogi leht: 165

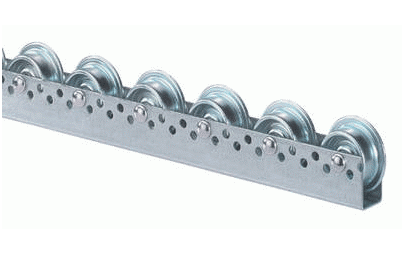

Roller tracks with standard galvanised steel rollers D. 48 mm

Roller separation distance	art.num.
50 mm	423.000
75 mm	423.001
100 mm	423.002
125 mm	423.003
end stop	423.004

available alternative:

Rollers with plain bearings
Plain and ball bearing rollers with a PUR buffer ring.

Please Note: When ordering, please include the required total roller track length. (The length should be divisible by 25 mm.)

Kataloogi leht: 165

Roller tracks with flanged galvanised steel rollers D. 50/66 mm

Roller separation distance	art.num.
75 mm	424.000
100 mm	424.001
125 mm	424.002
150 mm	424.003
end stop	424.004

Please Note: When ordering, please include the required total roller track length. (The length should be divisible by 25 mm.)

Kataloogi leht: 165

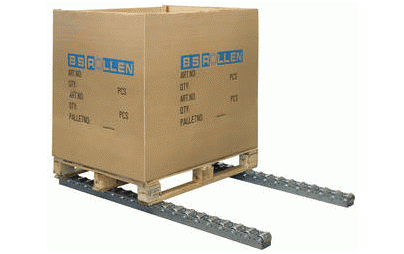

Pallet roller bar

The pallet roller bar consists of a sendzimir galvanised U-forn, 55 mm high and 80 mm wide. These forns are fitted with rollers with Ø 50 mm, at distances of 52, 78, 104, 130, 156 mm etc. Two further rows of holes in the base are for attaching the bar to substructures.

The pallet roller bar is available in sizes up to max. 6000 mm

separation (mm)	art.num.
steel roller, load capacity 150 kg
52	PRS.001
78	PRS.002
104	PRS.003
130	PRS.004
156	PRS.005
flanged steel roller , load capacity 150 kg
78	PRS.007
104	PRS.008
130	PRS.009
156	PRS.010

Please Note:

Please supply required length when ordering. It should be divisible by 26 mm .

Kataloogi leht: 166
