Flexible roller conveyors

Flexible mini-roller conveyors

  • are independant, flexible conveyors for changing transport directions and destinations.


They feature:

  • variable transport lengths(extendable)
  • height adjustability(700 - 1100 mm)
  • mobility by means of castor/guide rollers with arrestors.
  • Their routing flexibility easily allows curve making.

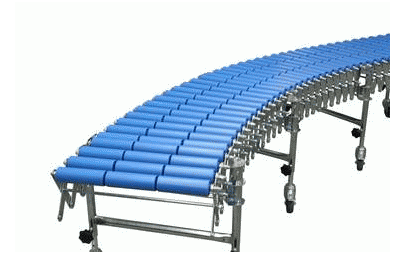

Flexible roller conveyors
axle distances 55 - 130 mm according to the extended length
plastic pipe transport rollers Ø 50 x 2,8 mm, with ball bearings
variant: galvanised steel transport rollers Ø 50 x 1,5 mm
(please ask)

headroom
standard height 700 - 1100 mm adjustable.
Alternative heights on request


 Flexible roller conveyors
lane width (mm)
 		 Number of supports
 		 rollers per axle
 		 extendable from - to (m)
 		 load capacity between 2 supports (kg)
 		 art.num.

300 3 3 1,2 - 4,4 100 kg SCHR.001
300 4 3 1,7 - 6,2 100 kg SCHR.002
300 5 3 2,2 - 7,9 100 kg SCHR.003
300 6 3 2,8 - 9,6 100 kg SCHR.004
400 3 4 1,2 - 4,4 100 kg SCHR.005
400 4 4 1,7 - 6,2 100 kg SCHR.006
400 5 4 2,2 - 7,9 100 kg SCHR.007
400 6 4 2,8 - 9,6 100 kg SCHR.008
500 3 5 1,2 - 4,4 120 kg SCHR.009
500 4 5 1,7 - 6,2 120 kg SCHR.010
500 5 5 2,2 - 7,9 120 kg SCHR.011
500 6 5 2,8 - 9,6 120 kg SCHR.012
600 3 6 1,2 - 4,4 120 kg SCHR.013
600 4 6 1,7 - 6,2 120 kg SCHR.014
600 5 6 2,2 - 7,9 120 kg SCHR.015
600 6 6 2,8 - 9,6 120 kg SCHR.016
Kataloogi leht: 171
Flexible roller conveyors

Flexible roller conveyors

  • are independant, flexible conveyors for changing transport directions and destinations.


They feature:

  • variable transport lengths(extendable)
  • height adjustability(700 - 1100 mm)
  • mobility by means of castor/guide rollers with arrestors.
  • Their routing flexibility easily allows curve making.


Flexible roller conveyors
axle distances 55 - 130 mm according to the extended length
plastic pipe transport rollers Ø 50 x 2,8 mm, with ball bearings
variant: galvanised steel transport rollers Ø 50 x 1,5 mm
(please ask)

headroom
standard height 700 - 1100 mm adjustable.
Alternative heights on request


 Flexible roller conveyors
lane width (mm)
 		 Number of supports
 		 rollers per axle
 		 extendable from - to (m)
 		 load capacity between 2 supports (kg)
 		 art.num.

300 3 1 1,9 - 4,4 100 kg SCHT.001
300 4 1 2,7 - 6,2 100 kg SCHT.002
300 5 1 3,3 - 7,9 100 kg SCHT.003
300 6 1 4,0 - 9,6 100 kg SCHT.004
400 3 2 1,9 - 4,4 100 kg SCHT.005
400 4 2 2,7 - 6,2 100 kg SCHT.006
400 5 2 3,3 - 7,9 100 kg SCHT.007
400 6 2 4,0 - 9,6 100 kg SCHT.008
500 3 3 1,9 - 4,4 100 kg SCHT.009
500 4 3 2,7 - 6,2 100 kg SCHT.010
500 5 3 3,3 - 7,9 100 kg SCHT.011
500 6 3 4,0 - 9,6 100 kg SCHT.012
600 3 2 1,9 - 4,4 120 kg SCHT.013
600 4 2 2,7 - 6,2 120 kg SCHT.014
600 5 2 3,3 - 7,9 120 kg SCHT.015
600 6 2 4,0 - 9,6 120 kg SCHT.016
Kataloogi leht:: 171

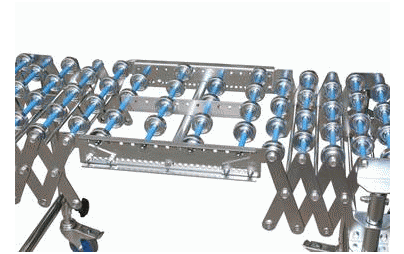

Connectors
  Connectors
lane width (mm)
 		 art.num.
roller conveyors		 art.num.
mini-roller conveyors
300 SCHV.001 SCHV.005
400 SCHV.002 SCHV.006
500 SCHV.003 SCHV.007
600 SCHV.004 SCHV.008
Kataloogi leht:: 171

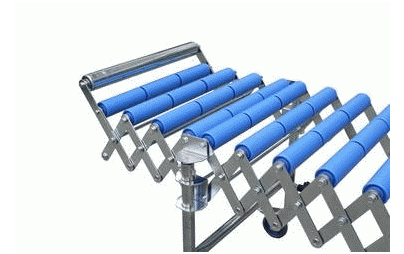

End stops
  End stops
lane width (mm)
 		 art.num.
fixed		 art.num.
retractable
300 SCHE.001 SCHE.005
400 SCHE.002 SCHE.006
500 SCHE.003 SCHE.007
600 SCHE.004 SCHE.008
Kataloogi leht:: 171
