PVC rullikud

Bearing types

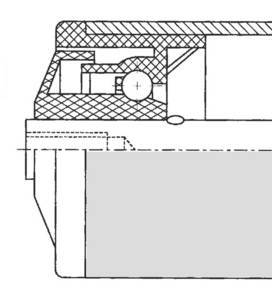

Conveyor roller bearing
Plastic bearing liner, grey with single row ball bearing

Payload max. 5 kg/bearing at ø 20 mm
Payload max. 7 kg/bearing at ø 30 and 40 mm

 external cylinder Ø in mm
Plastic cylinder
 		 art.num.
20X1,5 100
30X1,8 110
40X2,3 120

Conveyor roller bearing
Plastic bearing liner, blue with dual row ball bearing

Payload max. 10 kg/bearing

 external cylinder Ø in mm
Plastic cylinder
 		 art.num.
50X2,8 130

Conveyor roller bearing
Plastic bearing liner, blue with heat seal and ball bearing

Payload 80 kg/bearing

 external cylinder Ø in mm
Plastic cylinder
 		 art.num.
50X2,8 140
63X3,0 150

Axle types
External thread
External thread
Axles-Ø (mm)
 		 art.num.

6 mm A 6
8 mm A 8
10 mm A 10
12 mm A 12
14 mm A 14


Internal thread
Flat axle end
Axles-Ø (mm)
 		 art.num.

10 mm C 10
12 mm C 12
14 mm C 14


Flat axle end
Flat axle end
Axles-Ø (mm)
 		 art.num.

6 mm D 6
8 mm D 8
10 mm D 10
12 mm D 12
14 mm D 14


Spanner flat
Spanner flat
Axles-Ø (mm)
 		 art.num.

10 mm E 10
12 mm E 12
14 mm E 14

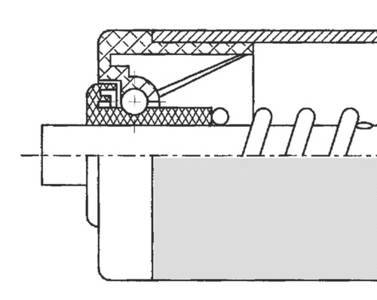

Spring axle
Spring axle
Axles-Ø (mm)
 		 art.num.

6 mm F 6
8 mm F 8
10 mm F 10
12 mm F 12


Katalogseite: 149
