Mööblirattad

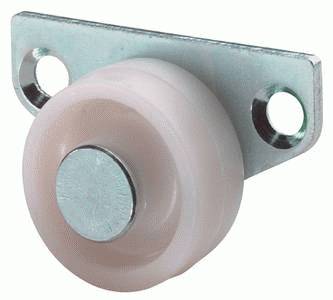

Voodi sahtli ratas
wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole diameter (mm)
mm
art.num.

30 14 40 32 52x24 5,2 E45
load capacity (kg) 40 kg
Voodi sahtli ratas


  • Kinnitus valmistatud lehtterasest
  • Plastmass ratas

Bed frame castor
Kataloogi leht: 58

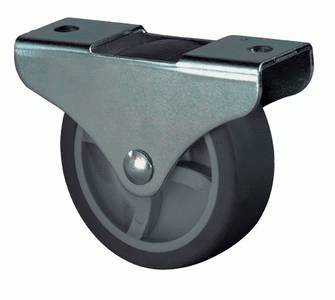

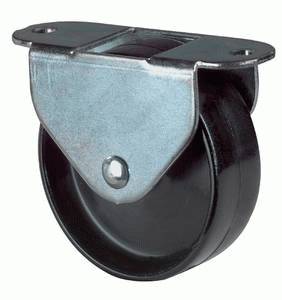

Sahtli ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
art.num.

15 11 20 17,0 30x16 21,0 4,2 E50.015
16 16 30 20,0 43x22 32,0 5,2 E50.016
25 14 35 29,0 41x18 31,0 4,2 E50.025
30 14 40 33,0 46x20 35,0 5,2 E50.030
32 18 45 35,0 52x25 39,0 5,2 E50.032
38 18 45 46,0 68x25 54,0 6,2 E50.038
40 18 50 47,0 68x25 54,0 6,2 E50.040
45 18 55 49,0 68x25 54,0 6,2 E50.045
50 19 60 51,0 68x25 54,0 6,2 E50.050
load capacity (kg) 20 - 60 kg
Sahtli ratas


  • Tsingitud terasest kahvel
  • Plastmass ratas
  • Liuglaager
  • Pehme pinna jaoks

Box castor
Kataloogi leht: 58

Sahtli ratas
wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
art.num.

25 13 30 29,0 41x18 31,0 4,2 E51.025
30 14 35 33,0 46x20 35,0 5,2 E51.030
50 18 50 51,0 68x25 54,0 6,2 E51.050
load capacity (kg) 30 - 50 kg
Sahtli ratas


  • Tsingitud terasest kahvel
  • Kummist ratas
  • Liuglaager
  • Kõva pinna jaoks

Box castor
Kataloogi leht: 58

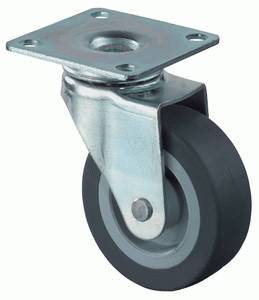

Pöörlev ratas
wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.

25 14 15 34 34x48 22x36 5,0 16 F25.025
25 14 15 34 40x40 29x29 5,0 16 F25.026
30 15 20 36 34x48 22x36 5,0 16 F25.030
30 15 20 36 40x40 29x29 5,0 16 F25.031
32 18 25 49 42x42 30x30 5,0 16 F25.032
38 18 25 52 42x42 30x30 5,0 16 F25.038
40 18 30 56 42x42 30x30 5,0 16 F25.040
40 18 30 64 47x47 35x35 6,5 17 F25.041
45 18 35 66 47x47 35x35 6,5 17 F25.046
50 19 40 68 47x47 35x35 6,5 17 F25.051
load capacity (kg) 15 - 40 kg
Pöörlev ratas


  • Tsingitud terasest kahvel
  • Plastmass ratas
  • Pehme pinna jaoks

Swivel castor
Kataloogi leht: 58

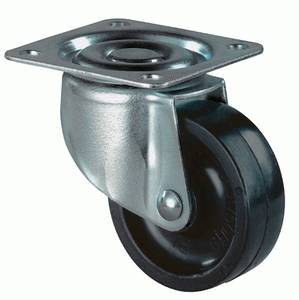

Pöörlev ratas
wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.

25 13 15 34 34x48 22x36 5,0 16 F26.025
25 13 15 34 40x40 29x29 5,0 16 F26.026
30 14 20 36 34x48 22x36 5,0 16 F26.030
30 14 20 36 40x40 29x29 5,0 16 F26.031
50 18 40 68 42x42 30x30 5,0 17 F26.050
50 18 40 68 47x47 35x35 6,5 17 F26.051
load capacity (kg) 15 - 40 kg
Pöörlev ratas


  • Tsingitud terasest kahvel
  • Kummist ratas
  • Kõva pinna jaoks

Swivel castor
Kataloogi leht: 58

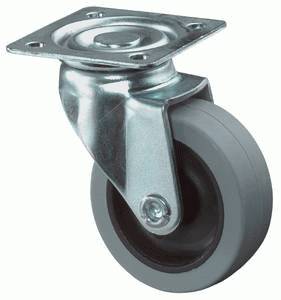

Pöörlev ratas
wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.

50 17 35 67,5 47x47 33x33 5,3 20 A200.A80.050
80 21 50 99 47x47 33x33 5,3 22 A200.A80.080
load capacity (kg) 35 - 50 kg
Pöörlev ratas


  • Lehtterasest kahvel
  • Üherealine kuullaager pöördpeas

Veerepind
Hall kumm
Velg
Plastmass
Laager
Liuglaager
Swivel castor
Kataloogi leht: 60

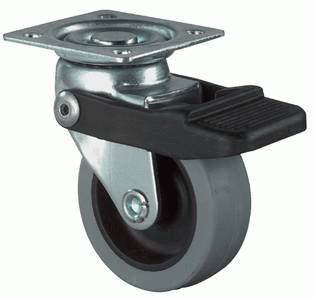

Pöörlev ratas piduriga
wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.

50 17 35 67,5 47x47 33x33 5,3 20 A220.A80.050
80 21 50 99 47x47 33x33 5,3 22 A220.A80.080
load capacity (kg) 35 - 50 kg
Pöörlev ratas piduriga


  • Lehtterasest kahvel
  • Üherealine kuullaager pöördpeas

Veerepind
Hall kumm
Velg
Plastmass
Laager
Liuglaager
Swivel castor with wheel brake
Kataloogi leht: 60

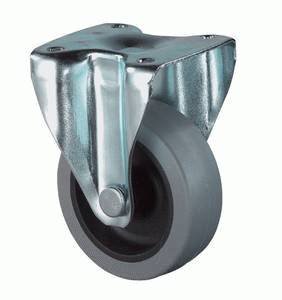

Kinnitatud ratas
wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
art.num.

50 17 35 67,5 47x47 33x33 5,3 A210.A80.050
80 21 50 99 47x47 33x33 5,3 A210.A80.080
load capacity (kg) 35 - 50 kg
Kinnitatud ratas


  • Lehtterasest kahvel

Veereind
Hall kumm
Velg
Plastmass
Laager
Liuglaager
Fixed castor
 Kataloogi leht: 60

Pöörlev ratas
wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
bolt hole-Ø (mm)
mm
offset (mm)
mm
art.num.

38 17 20 59 10 17,5 F40.038
load capacity (kg) 20 kg
Pöörlev ratas


  • Lehtterasest kahvel
  • Plastmass ratas
  • Needitud liuglaager

Swivel castor
Kataloogi leht: 59
 Tugitooli ratas
wheel Ø (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
offset (mm)
mm
art.num.

kõva veerepind pehme pinna jaoks
25 90 47 38x38 27x27 5 25 F72.026
pehme veerepind kõva pinna jaoks
25 75 47 38x38 27x27 5 25 F73.025
kõva veerepind pehme pinna jaoks
25 75 47 38x38 27x27 5 25 F72.025
pehme veerepind kõva pinna jaoks
25 90 47 38x38 27x27 5 25 F73.026
load capacity (kg) 75 - 90 kg
Tugitooli ratas


  • Must

Barrel castors
Kataloogi leht: 63

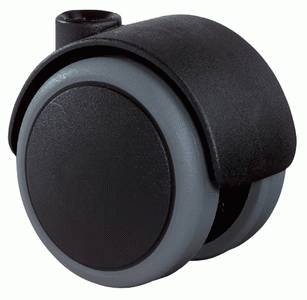

Plastmassist topeltratas
wheel Ø (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
art.num.

kõva veerepind pehme põranda jaoks
40 40 58 42x42 32x32 5 F75.040.PL
50 50 64 42x42 32x32 5 F75.050.PL
 40 - 50 kg
Plastmassist topeltratas

  • Plaatkinnitus
  • must RAL 9005

Plastic dual castor

Kataloogi leht: 63




Plastmassist topeltratas piduriga
wheel Ø (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
art.num.

kõva veerepind pehme põranda jaoks
40 40 58 42x42 32x32 5 F85.040.PL
50 40 64 42x42 32x32 5 F85.050.PL
 40 kg
Plastmassist topeltratas piduriga


  • Plaatkinnitus
  • must RAL 9005

Plastic dual castor with brake

Kataloogi leht: 63




Plastmassist topeltratas
wheel Ø (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
art.num.

pehme veerepind kõva põranda jaoks
40 40 55 42x42 32x32 4,5 F76.040.PL
50 50 65 42x42 32x32 4,5 F76.050.PL
 40 - 50 kg
Plastmassist topeltratas


  • Plaatkinnitus
  • must RAL 9005

Plastic dual castor with brake

Kataloogi leht: 63




Plastmassist topeltratas piduriga
wheel Ø (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
art.num.

pehme veerepind kõva põranda jaoks
40 40 55 42x42 32x32 4,5 F86.040.PL
50 50 65 42x42 32x32 4,5 F86.050.PL
 40 - 50 kg
Plastmassist topeltratas piduriga


  • Plaatkinnitus
  • must RAL 9005

Plastic dual castor with brake

Kataloogi leht: 63

Plastmassist topeltratas

wheel Ø (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
threaded stem (mm)
mm
art.num.

kõva veerepind pehme põranda jaoks
40 30 49 M10x15 F75.040.G10
40 30 49 M8x15 F75.040.G08
50 40 60 M8x15 F75.050.G08
50 40 60 M10x15 F75.050.G10
 30 - 40 kg
Plastmassist topeltratas


  • Keermega tihvt
  • must RAL 9005

Plastic dual castor

Kataloogi leht: 64

Plastmassist topeltratas piduriga

wheel Ø (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
threaded stem (mm)
mm
art.num.

kõva veerepind pehme põranda jaoks
40 30 49 M10x15 F85.040.G10
40 30 49 M8x15 F85.040.G08
50 40 60 M8x15 F85.050.G08
50 40 60 M10x15 F85.050.G10
 30 - 40 kg
Plastmassist topeltratas piduriga


  • Keermega tihvt
  • must RAL 9005

Plastic dual castor with brake

Kataloogi leht: 64

Plastmassist topeltratas

wheel Ø (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
threaded stem (mm)
mm
art.num.

pehme veerepind kõva põranda jaoks
40 30 52 M10x20 F76.040.G10
40 30 52 M8x16 F76.040.G08
50 50 62 M8x16 F76.050.G08
50 50 62 M10x20 F76.050.G10
 30 - 50 kg
Plastmassist topeltratasr


  • Keermega tihvt
  • must RAL 9005

Plastic dual castor

Kataloogi leht: 64

Plastmassist topeltratas piduriga

wheel Ø (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
threaded stem (mm)
mm
art.num.

pehme veerepind kõva põranda jaoks
40 30 52 M10x20 F86.040.G10
40 30 52 M8x16 F86.040.G08
50 50 62 M8x16 F86.050.G08
50 50 62 M10x20 F86.050.G10
 30 - 50 kg
Plastmassist topeltratas piduriga

  • Keermega tihvt
  • must RAL 9005

Plastic dual castor with brake

Kataloogi leht: 64

Plastmassist topeltratas
wheel Ø (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
art.num.

kõva veerepind pehme põranda jaoks
40 30 58 42x42 32x32 5 F75.040.PLGR
50 40 64 42x42 32x32 5 F75.050.PLGR
 30 - 40 kg
Plastmassist topeltratas


  • Plaatkinnitus
  • hall RAL 7035

Plastic dual castor

Kataloogi leht: 65


Plastmassist topeltratas piduriga
wheel Ø (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
art.num.

kõva veerepind pehme põranda jaoks
40 30 58 42x42 32x32 5 F85.040.PLGR
50 40 64 42x42 32x32 5 F85.050.PLGR
 30 - 40 kg
Plastmassist topeltratas piduriga


  • Plaatkinnitus
  • hall RAL 7035

Plastic dual castor with brake

Kataloogi leht: 65


Plastmassist topeltratas
wheel Ø (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
threaded stem (mm)
mm
art.num.

kõva veerepind pehme põranda jaoks
40 30 49 M10x15 F75.040.G10.GR
40 30 49 M8x15 F75.040.G08.GR
50 40 60 M8x15 F75.050.G08.GR
50 40 60 M10x15 F75.050.G10.GR
 30 - 40 kg
Plastmassist topeltratas


  • Keermega tihvt
  • hall RAL 7035

Plastic dual castor

Kataloogi leht: 65


Plastmassist topeltratas piduriga
wheel Ø (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
threaded stem (mm)
mm
art.num.

kõva veerepind pehme põranda jaoks
40 30 49 M10x15 F85.040.G10.GR
40 30 49 M8x15 F85.040.G08.GR
50 40 60 M8x15 F85.050.G08.GR
50 40 60 M10x15 F85.050.G10.GR
 30 - 40 kg
Plastmassist topeltratas piduriga


  • Keermega tihvt
  • hall RAL 7035

Plastic dual castor with brake

Kataloogi leht: 65

Keermega tihvt
threaded stem (mm)
mm
Kinnitus (mm)

art.num.

M8x20 8 G30.008.08
M10x20 8 G30.010.08

Keermega tihvt

Threaded stem


Tihvt plaadiga
plate size (mm)
mm
screwhole distance (mm)
mm
screwhole diameter (mm)
mm
Kinnitus (mm)

art.num.

38x38 26x26 5 8 G35.038.08

Tihvt plaadiga

Plate fitting


Tihvt
pin (mm)
mm
Kinnitus (mm)

art.num.

8x30 8 G40.008.08
8,5x30 8 G40.008,5.08
9x30 8 G40.009.08
9,5x30 8 G40.009,5.08
10x30 8 G40.010.08
11x30 for plastic bushes 8 G40.011.08

Tihvt

Hammer-in stem


Polüamiidist hülss
Paigaldusavale
läbimõõduga (mm)

Rõnga
läbimõõt (mm)

Pikkus (mm)

art.num.

14 18 36 G50.014
16 18 36 G50.016
17 19 36 G50.017
18 20 36 G50.018
19 21 36 G50.019
20 22 36 G50.020
22 24 36 G50.022
23 25 36 G50.023

Polüamiidist hülss
  • 11 mm tihvti jaoks
  • ümmargusele torule

Polyamide bush
Kataloogi leht: 67

Polüamiidist hülss
Paigaldusavale
läbimõõduga (mm)

Rõnga
läbimõõt (mm)

Pikkus (mm)

art.num.

16x16 19x19 36 G50.016X016
17x17 19x19 36 G50.017X017
18x18 20x20 36 G50.018X018
21x21 23,5x23,5 36 G50.021X021
22x22 24,5x24,5 36 G50.022X022
23x23 25,5x25,5 36 G50.023X023
27x27 30x30 36 G50.027X027

Polüamiidist hülss

  • 11 mm tihvti jaoks
  • ruudukujulisele torule

Polyamide bush
Kataloogi leht: 67

Polüamiidist hülss
Paigaldusavale
läbimõõduga (mm)

Rõnga
läbimõõt (mm)

Pikkus (mm)

art.num.

14 29 36 G55.014

Polüamiidist hülss


  • 11 mm tihvti jaoks
  • puit konstruktsioonile

Polyamide bush

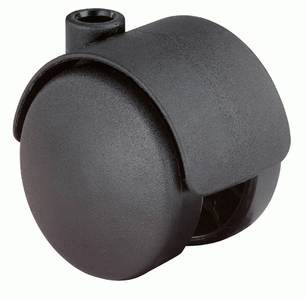

Topeltratas
wheel Ø (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
offset (mm)
mm
art.num.

kõva veerepind pehme pinna jaoks
40 25 46 16 F75.040.08
50 40 59 18 F75.050.08
load capacity (kg) 25 - 50 kg
Topeltratas


  • Must
  • Plug-in süsteem
  • Kinnitusava 8 mm

Plastic dual castors

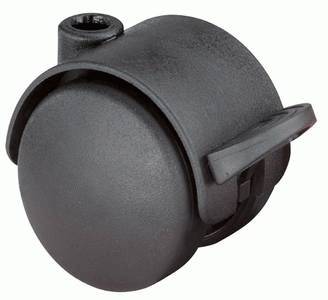

Topeltratas piduriga
wheel Ø (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
offset (mm)
mm
art.num.

kõva veerepind pehme pinna jaoks
40 25 46 16 F85.040.08
50 40 59 18 F85.050.08
load capacity (kg) 25 - 50 kg
Topeltratas piduriga


  • Must
  • Plug-in süsteem
  • Kinnitusava 8 mm

Plastic dual castors


Topeltratas
wheel Ø (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
offset (mm)
mm
art.num.

pehme veerepind kõva pinna jaoks
40 25 46 16 F76.040.08
50 40 59 18 F76.050.08
load capacity (kg) 25 - 50 kg
Topeltratas


  • Must
  • Plug-in süsteem
  • Kinnitusava 8 mm

Plastic dual castors

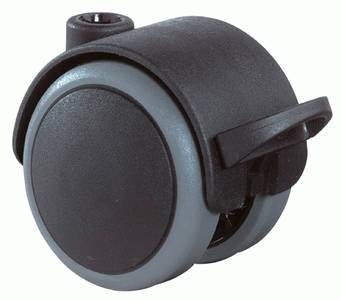

Topeltratas piduriga
wheel Ø (mm)
mm
load capacity (kg)
kg
overall height (mm)
mm
offset (mm)
mm
art.num.

pehme veerepind kõva pinna jaoks
40 25 46 16 F86.040.08
50 40 59 18 F86.050.08
load capacity (kg) 25 - 50 kg
Topeltratas piduriga


  • Must
  • Plug-in süsteem
  • Kinnitusava 8 mm

Plastic dual castors with brake
