Lintkonveierid

General user infornation:

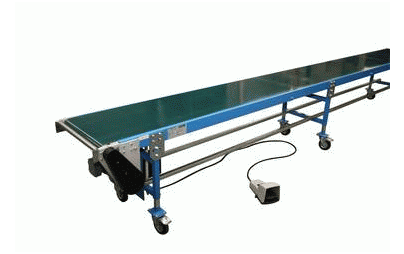

• Belt conveyor for transporting light goods with max. weights of 30 kg/m
• The actual estimated conveyor support capacity depends on the belt width and track length.
• Sliding belt conveyors can be designed as up or downhill conveyors in order to reach high or lower lying work areas.
• A large number of differing types of belts allows individual matching to the intended goods.

Note:
please always state conveyor belts. Please inforn us:

• type, properties and weight of conveyed goods and
• operational conditions.
• Transport speed (standard: 0,3 m/sec constant)
• Assembly height (supports are accessories)
• electr. elements are also accessories. The basic version only includes the drive motor.

Frame:
bent sheet steel

conveyor belt:
dual layer polyester material with PVC covering

Drive:
AC-current drive motor 230/400 V 50Hz, IP 54 in transport direction, left, with roller chain on the drive drum Ø 80 mm

Transport speed:
V = 0,3 m/sec. (standard), uni-directional, alternative speeds possible -  also optionally adjustable (accessory)

Supports:
Steel square pipe construction, blue RAL 5015 laquering. Supports must be ordered separately.

Track lengths:
alternative track lengths (and intermediate lengths) on request

Accessories on request:
on/off motor protection switch (already installed)
connecting cable (5 m) with plug (already attached)
Finger protection roll at belt end

Transport speed frequency control
Lateral guides (various types)
middle drive
feed belt
