Kummist rattad

Termoplastilisest kummist ratas


wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
axle bore/-Ø (mm)
mm
hub length (mm)
mm
art.num.

25 13   5 15 A80.025
25 20   8 20 A80.027
30 14   5 15 A80.030
50 18 40 6 21,5 A80.050
50 18 40 8 20,5 A80.052
75 24 50 6 28 A80.075
75 24 50 10 27 A80.076
80 21 80 12 37 A80.081
100 24 55 8 30 A80.100
100 28 60 12 32 A80.102
100 30 80 12,1 35 A80.104
125 30 100 12 35 A80.125
125 28 70 12 32 A80.126
150 32 100 15 38 A80.151
load capacity (kg)40 - 100 kg

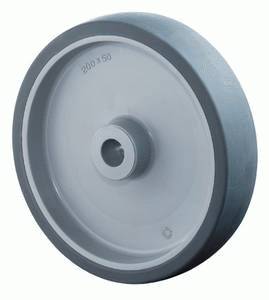

Termoplastilisest kummist ratas

Veerepind
Hall termoplastiline kumm
Velg
Platmass
Laager
Liuglaager
Rubber wheel


Kataloogi leht: 37




Termoplastilisest kummist ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
axle bore/-Ø (mm)
mm
hub length (mm)
mm
art.num.

125 32 120 10 41 A85.127
200 45 250 12 62 A85.201
160 45 200 12 62 A85.161
100 32 110 8 41 A85.103
50 18 40 6 22,5 A85.050
75 24 50 6 29 A85.075
80 21 80 8 37 A85.081
80 32 100 8 41 A85.083
100 25 65 8 30 A85.100
100 30 100 8 36,5 A85.101
125 31 100 8 36,5 A85.125
150 32 120 8 36,5 A85.150
150 32 100 10 38 A85.151
200 32 120 8 37 A85.200
 40 - 250 kg

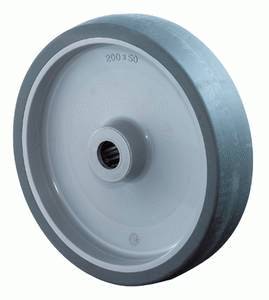

Termoplastilisest kummist ratas

Veerepind
Hall termoplastiline kumm
Velg
Platmass
Laager
Kuullaager
Rubber wheel


Kataloogi leht: 37


Termoplastilisest kummist ratas, antistaatiline

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
axle bore/-Ø (mm)
mm
hub length (mm)
mm
art.num.

50 18 40 6 22,5 A89.050
75 24 50 6 29 A89.075
100 28 70 8 30 A89.100
 40 - 70 kg

Termoplastilisest kummist ratas, antistaatiline



Veerepind
Hall termoplastiline kumm
Velg
Platmass
Laager
Kuullaager
Rubber wheel, antistatic
alternatiiv: liuglaager

Kataloogi leht: 37


Torkekindel kummist ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
axle bore/-Ø (mm)
mm
hub length (mm)
mm
Ball bearing art.num.

100 32 50 8 36 6000 A86.100
125 32 50 8 36 6000 A86.126
150 33 50 8 36 6000 A86.151
load capacity (kg) 50 kg
Torkekindel kummist ratas

Veerepind
Hall kumm
Velg
Plastmass
Laager
Kuullaager
Malfunction-free rubber wheel

Kataloogi leht: 37



Polüuretaanist ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
axle bore/-Ø (mm)
mm
hub length (mm)
mm
Ball bearing art.num.

125 30 50 8 36 6000 A88.125
150 30 50 8 36 6000 A88.150
250 50 50 12 54 6201 A88.250
300 40 50 12 54 6000 A88.300
load capacity (kg) 50 kg
Polüuretaanist ratas

Veerepind
Hall polüuretaan
Velg
Plastmass
Laager
Kuullaager
Polyurethane wheel

Kataloogi leht: 37



Kummist ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
axle bore/-Ø (mm)
mm
hub length (mm)
mm
art.num.

80 25 50 12 39 B40.080
80 32 100 12 40 B40.081
100 30 70 12 39 B40.100
125 37,5 100 15 50 B40.125
140 37,5 130 15 43 B40.140
160 40 150 20 60 B40.160
200 50 200 20 60 B40.200
250 50 250 20 60 B40.250
250 50 250 25 60 B40.251
300 55 120 20 56 B40.300
400 80 200 20 76 B40.400
400 80 200 25 76 B40.401*
400 75 200 20 76 B40.402*
400 75 200 25 76 B40.403
load capacity (kg) 50 - 250 kg
Kummist ratas

Veerepind
Must kumm
Velg
Plastmass (*punane)
Laager
Liuglaager
Rubber wheel

Kataloogi leht: 42



Kummist ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
axle bore/-Ø (mm)
mm
hub length (mm)
mm
art.num.

80 30 50 12 40 B45.080
100 30 70 12 40 B45.100
125 37,5 100 15 50 B45.125
160 40 135 20 60 B45.160
200 50 205 20 60 B45.200
250 50 250 20 60 B45.250
400 80 200 20 76 B45.400
load capacity (kg) 50 - 250 kg
Kummist ratas

Veerepind
Must kumm
Velg
Plastmass
Laager
Rull-laager
Rubber wheel

Kataloogi leht: 42



Kummist ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
axle bore/-Ø (mm)
mm
hub length (mm)
mm
art.num.

80 30 50 12 40 B46.080
100 30 70 12 40 B46.100
125 37,5 100 15 50 B46.125
140 38 115 15 48 B46.140
160 40 135 20 60 B46.160
200 50 205 20 60 B46.200
load capacity (kg) 50 - 205 kg
Kummist ratas

Veerepind
Hall kumm
Velg
Plastmass
Laager
Rull-laager
Rubber wheel

Kataloogi leht: 42



Ratas 80/100/120/240 l prügikonteinerite jaoks

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
axle bore/-Ø (mm)
mm
art.num.

200 50 205 22,5 B50.200
load capacity (kg) 205 kg
Ratas 80/100/120/240 l konteinerite jaoks

Veerepind
Must kumm
Velg
Plastmass
Laager
Liuglaager
Wheel for refuse containers 80/100/120/240 l

Kataloogi leht: 42



Kummist ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
axle bore/-Ø (mm)
mm
hub length (mm)
mm
art.num.

80 25 50 12 40 B55.080
100 30 70 12 40 B55.100
125 37 100 15 50 B55.125
140 38 115 15 50 B55.140
150 37,5 160 20 49 B55.150
160 40 135 20 60 B55.160
180 45 170 20 58 B55.180
200 50 205 20 60 B55.200
225 55 300 20 58 B55.225
250 50 250 25 60 B55.250
280 70 400 25 84 B55.280
400 70 400 25 75 B55.400
load capacity (kg) 50 - 400 kg
Kummist ratas

Veerepind
Must kumm
Velg
Tsingitud teras
Laager
Rull-laager
Rubber wheel

Valik: Kuullaager
Kataloogi leht: 43



Kummist ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
axle bore/-Ø (mm)
mm
hub length (mm)
mm
art.num.

80 25 50 12 40 B56.080
100 30 70 12 40 B56.100
125 37 100 15 50 B56.125
140 37,5 115 15 50 B56.140
160 40 135 20 60 B56.160
180 45 170 20 58 B56.180
200 50 205 20 60 B56.200
250 60 300 25 78,5 B56.250
280 70 350 25 78,5 B56.280
load capacity (kg) 50 - 350 kg
Kummist ratas

Veerepind
Hall kumm
Velg
Tsingitud teras
Laager
Rull-laager
Rubber wheel

Valik: Kuullaager
Kataloogi leht: 43



Kummist ratas, antistaatiline

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
axle bore/-Ø (mm)
mm
hub length (mm)
mm
art.num.

80 30 65 12 39 B58.080
100 30 80 12 39 B58.100
125 37 115 15 49 B58.125
160 40 160 20 58 B58.160
200 50 225 20 58 B58.200
load capacity (kg) 65 - 225 kg
Kummist ratas

Veerepind
Must kumm, antistaatiline
Velg
Tsingitud teras
Laager
Rull-laager
Rubber wheel
Kataloogi leht: 43


Kummist ratas, pool-elastne

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
axle bore/-Ø (mm)
mm
hub length (mm)
mm
art.num.

100 30 110 12 39 B59.100
125 38 150 15 49 B59.125
160 40 210 20 58 B59.160
200 50 300 20 58 B59.200
load capacity (kg) 110 - 300 kg
Kummist ratas

Veerepind
Must kumm, pool-elastne
Velg
Tsingitud teras
Laager
Rull-laager
Rubber wheel
Valik: Kuullaager
Kataloogi leht: 43


Kummist ratas
wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
axle bore/-Ø (mm)
mm
hub length (mm)
mm
art.num.

80 30 60 12 40 B43.080
100 30 80 12 40 B43.100
125 35 100 15 44 B43.125
150 35 140 15 44 B43.150
200 50 205 20 58 B43.200
load capacity (kg) 60 - 205 kg
Kummist ratas

Veerepind
Termoplastiline kumm
Velg
Plastmass
Laager
Liuglaager
Rubber wheel
Kataloogi leht: 44


Kummist ratas
wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
axle bore/-Ø (mm)
mm
hub length (mm)
mm
art.num.

80 30 60 12 40 B44.080
100 30 80 12 40 B44.100
125 35 100 15 44 B44.125
150 35 140 15 44 B44.150
200 50 205 20 58 B44.200
load capacity (kg) 60 - 205 kg
Kummist ratas

Veerepind
Termoplastiline kumm
Velg
Plastmass
Laager
Rull-laager
Rubber wheel
Kataloogi leht: 44


Kummist ratas
wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
axle bore/-Ø (mm)
mm
hub length (mm)
mm
art.num.

80 30 120 12 30 B47.080
100 30 150 15 35 B47.100
125 35 200 15 35 B47.125
150 40 230 20 47 B47.160
200 50 350 20 52 B47.200
load capacity (kg) 150 - 550 kg
Kummist ratas

Veerepind
Santoprene
Velg
Plastmass
Laager
Kuullaager
Rubber wheel
Kataloogi leht: 44


Kummist ratas
wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
axle bore/-Ø (mm)
mm
hub length (mm)
mm
art.num.

100 30 140 12 40 B60.100
125 45 140 15 50 B60.125
125 50 300 20 58 B60.126
160 50 250 20 58 B60.160
200 50 350 20 58 B60.200
load capacity (kg) 140 - 450 kg
Kummist ratas

Veerepind
Must elastne rehv
Velg
Plastmass
Laager
Rull-laager
Rubber wheel
Kataloogi leht: 44


Kummist ratas
wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
axle bore/-Ø (mm)
mm
hub length (mm)
mm
art.num.

80 32 150 12 40
100 26 140 12 40 B61.101
125 45 140 15 50 B61.125
125 50 300 20 58 B61.126
160 42 300 20 60 B61.160
200 46 400 20 60 B61.200
load capacity (kg) 140 - 400 kg
Kummist ratas

Veerepind
Sinine elastne rehv
Velg
Plastmass
Laager
Rull-laager (80 mm läbimõõt - liuglaagriga, 100 mm läbimõõt- kaitsetega)
Rubber wheel
Kataloogi leht: 44

Kummist ratas
wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
axle bore/-Ø (mm)
mm
hub length (mm)
mm
art.num.

200 36 400 20 60 B63.200
160 36 350 20 60 B63.160
125 36 200 15 50 B63.125
100 36 150 12 40 B63.100
80 35 100 12 40 B63.080
 100 - 400 kg
Kummist ratas

Veerepind
Hall termoplastiline kumm
Velg
Platmass
Laager
Liuglaager
Rubber wheel

Kataloogi leht: 45

Kummist ratas
wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
axle bore/-Ø (mm)
mm
hub length (mm)
mm
art.num.

100 36 150 12 40 B64.100
125 36 200 15 50 B64.125
160 42 350 20 60 B64.160
200 45 400 20 60 B64.200
 150 - 400 kg
Kummist ratas

Veerepind
Hall termoplastiline kumm
Velg
Platmass
Laager
kuullaager
Rubber wheel

Kataloogi leht: 45

Kummist ratas
wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
axle bore/-Ø (mm)
mm
hub length (mm)
mm
art.num.

100 40 150 15 40 B80.100
125 50 220 20 50 B80.125
125 40 200 20 45 B80.126
125 40 180 15 40 B80.127
160 50 300 20 60 B80.160
160 50 350 20 50 B80.161
180 50 350 20 60 B80.180
200 50 450 20 60 B80.200
200 76 500 25 82 B80.201
250 50 550 20 60 B80.251
250 60 600 20 70 B80.250
250 63 580 20 70 B80.252
300 60 700 30 75 B80.300
load capacity (kg) 150 - 700 kg
Kummist ratas

Veerepind
Must elastne rehv
Velg
Alumiinium
Laager
Kuullaager
Rubber wheel

Kataloogi leht: 45





Kummist ratas

wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
axle bore/-Ø (mm)
mm
hub length (mm)
mm
art.num.

100 40 150 15 40 B83.100
125 50 220 20 50 B83.125
125 40 200 20 45 B83.126
160 50 300 20 60 B83.160
200 50 450 20 60 B83.200
load capacity (kg) 150 - 450 kg
Kummist ratas

Veerepind
Hall elastne rehv
Velg
Alumiinium
Laager
Kuullaager
Rubber wheel
Kataloogi leht: 45


Kummist ratas
wheel Ø (mm)
mm
wheel width (mm)
mm
load capacity (kg)
kg
axle bore/-Ø (mm)
mm
hub length (mm)
mm
art.num.

100 38 150 20 41 B81.100
100 50 210 20 60 B81.101
125 50 275 20 60 B81.127
150 50 350 25 60 B81.151
150 75 425 30 82 B81.152
200 50 450 25 60 B81.202
200 75 550 30 82 B81.203
200 100 675 40 108 B81.204
250 50 500 25 60 B81.252
250 75 750 30 82 B81.253
250 100 950 40 108 B81.254
300 75 850 30 82 B81.303
400 75 1200 30 82 B81.400
400 100 1500 40 108 B81.401
load capacity (kg) 150 - 1500 kg
Kummist ratas

Veerepind
Must elastne rehv
Velg
Valatud malm
Laager
Kuullaager
Rubber wheel
Kataloogi leht: 46
