Konveieri rattad

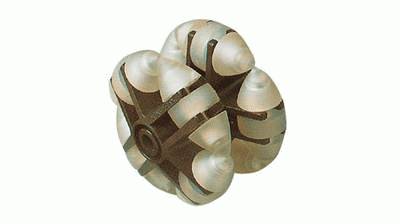

Multi-directional rollers
wheel Ø (mm)
mm		 wheel width (mm)
mm		 Koormus
kg		 axle bore/-Ø (mm)
mm		 hub length (mm)
mm		 art.num.

50 39,5 10 8,2 40 A59.050
60 51,5 20 8,2 40 A59.060
80 61,5 40 8,2 44 A59.080
Koormus 10 - 40 kg
Multi-directional rollers


Plastic, hard tread
Multi-directional rollers

Catalogue page: 167

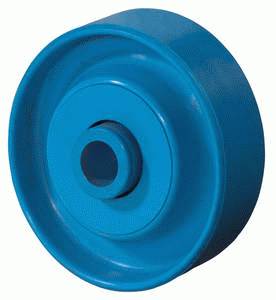

Nylon wheels
wheel Ø (mm)
mm		 wheel width (mm)
mm		 Koormus
kg		 axle bore/-Ø (mm)
mm		 hub length (mm)
mm		 art.num.

48 16 5,4 8,2 24 A60.048
Koormus 5,4 kg
Nylon wheels


black with ball bearing bearing cups hardened for roller track use


Nylon wheels
available alternative: Standard roller with PUR buffer ring
Catalogue page: 167

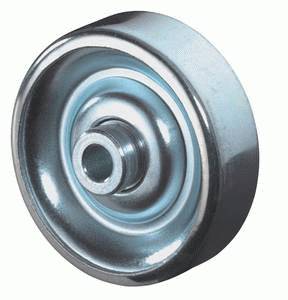

Sheet steel wheels
wheel Ø (mm)
mm		 wheel width (mm)
mm		 Koormus
kg		 axle bore/-Ø (mm)
mm		 hub length (mm)
mm		 art.num.

48 16 7,7 6,2 24 A65.048
48 16 7,3 8,2 24 A65.049
Koormus 7,3 - 7,7 kg
Sheet steel wheels


black with ball bearing bearing cups hardened for roller track use


Sheet steel wheels
available alternative: Standard roller with PUR buffer ring
Catalogue page: 167

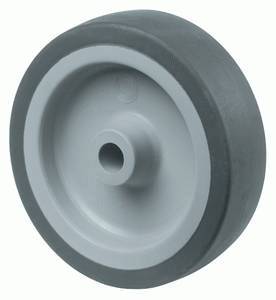

Solid rubber wheel
wheel Ø (mm)
mm		 wheel width (mm)
mm		 Koormus
kg		 axle bore/-Ø (mm)
mm		 hub length (mm)
mm		 art.num.

50 18 40 6 21,5 A80.050
49 18 40 8 22 A80.050.SO
49 18 40 8 22 A80.050.SO.G
50 18 40 8 20,5 A80.052
Koormus 40 kg
Solid rubber wheel


blue-grey, solid rubber, non-marking, on nylon wheel body (A80 050 SO G = yellow tread)


Solid rubber wheel
available alternative: Standard roller with PUR buffer ring
Catalogue page: 167
