Drive section

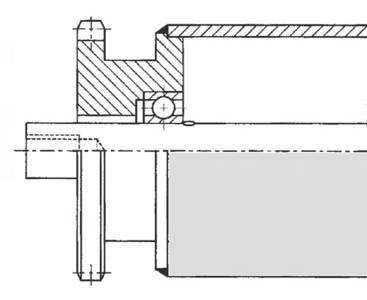

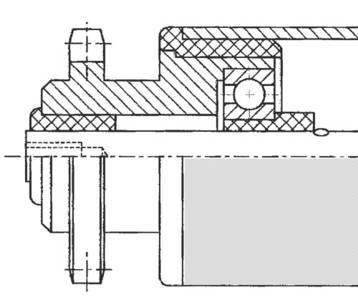

Single sprocket wheel 1/2" x 5/16", 11 steel or alternatively plastic sprockets, available as a fixed drive with press or welded fit or as an accumulating conveyor. Press fit fixed drive should only be used for continuous conveyance.
Thrust bearing
Plastic bearing liner with dual heat seal and grooved ball bearing.
Payload 40 kg/roller
|
external cylinder Ø in mm |
Plastic cylinder
|
art.num. |
|
50X2,8 |
160 |
|
63X3,0 |
170 |
|
 |
Drive section

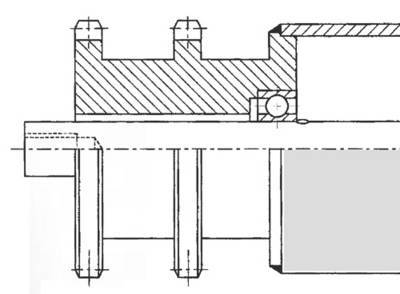

Dual sprocket wheel 1/2" x 5/16", 11 steel or alternatively plastic sprockets, available as a fixed drive with press or welded fit or as an accumulating conveyor. Press fit fixed drive should only be used for continuous conveyance.
Thrust bearing
Plastic bearing liner with dual heat seal and grooved ball bearing.
Payload 40 kg/roller
|
external cylinder Ø in mm |
Plastic cylinder
|
art.num. |
|
50X2,8 |
180 |
|
63x3,0 |
190 |
|
External thread
 |
Axles-Ø (mm)
|
art.num.
|
|
10 mm |
A 10 |
|
12 mm |
A 12 |
|
14 mm |
A 14 |
|
|
|
|
|
Internal thread
 |
Axles-Ø (mm)
|
art.num.
|
|
12 mm |
C 12 |
|
14 mm |
C 14 |
|
|
|
|
|
Catalogue page: 158
|
|
 |

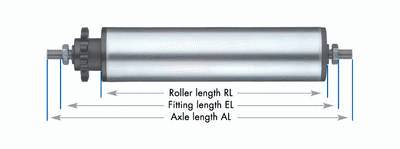

Drive section
Single sprocket wheel 1/2" x 5/16", 11 steel or alternatively plastic sprockets, available as a fixed drive with press or welded fit or as an accumulating conveyor. Press fit fixed drive should only be used for continuous conveyance.
Thrust bearing
Plastic bearing liner with dual heat seal and grooved ball bearing.
Payload 40 kg/roller
|
external cylinder Ø in mm |
blank steel cylinder
|
art.num. |
|
50X1,5 |
291 |
|
50X2,0 |
301 |
|
|
311 |
|
80X2,0 |
321 |
|
 |
Drive section

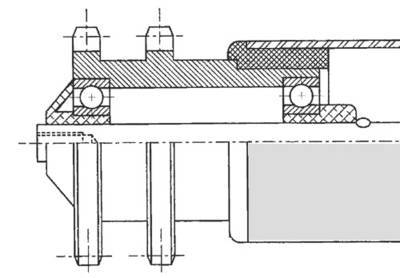

Dual sprocket wheel 1/2" x 5/16", 11 steel or alternatively plastic sprockets, available as a fixed drive with press or welded fit or as an accumulating conveyor. Press fit fixed drive should only be used for continuous conveyance.
Thrust bearing
Plastic bearing liner with dual heat seal and grooved ball bearing.
Payload 40 kg/roller
|
external cylinder Ø in mm |
blank steel cylinder
|
art.num. |
|
50x1,5 |
331 |
|
50x2,0 |
341 |
|
60x2,0 |
351 |
|
80x2,0 |
361 |
|
 |
Drive section
Single sprocket wheel 5/8" x3/8", 13 or 15 steel sprockets, welded onto roller frame
Thrust bearing
Heavy duty, sheet steel liner with grooved ball bearing.
Payload 120 kg/roller
|
external cylinder Ø in mm |
blank steel cylinder
|
art.num. |
|
63,5x2,9 |
371 |
|
80x2,0 |
381 |
|
80x3,0 |
391 |
|
88,9x2,9 |
401 |
|
 |
Drive section
Dual sprocket wheel 5/8" x3/8", 15 steel sprockets, welded onto roller frame
Thrust bearing
Heavy duty, sheet steel liner with grooved ball bearing.
Payload 120 kg/roller
|
external cylinder Ø in mm |
blank steel cylinder
|
art.num. |
|
63,5x2,9 |
411 |
|
80x2,0 |
421 |
|
80x3,0 |
431 |
|
88,9x2,9 |
441 |
|
External thread
|
|
Axles-Ø (mm)
|
art.num.
|
|
10 mm |
A 10 |
|
12 mm |
A 12 |
|
14 mm |
A 14 |
|
20 mm |
A 20 |
|
|
|
|
|
Internal thread
|
|
Axles-Ø (mm)
|
art.num.
|
|
12 mm |
C 12 |
|
14 mm |
C 14 |
|
20 mm |
C 20 |
|
25 mm |
C 25 |
|
|
|
|
|
Catalogue page: 159
|
|
 |

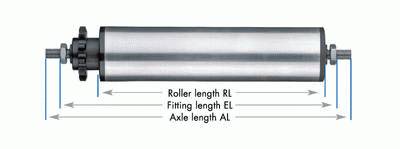

Drive section
Single sprocket wheel 1/2" x 5/16", 11 steel or alternatively plastic sprockets, available as a fixed drive with press or welded fit or as an accumulating conveyor. Press fit fixed drive should only be used for continuous conveyance.
Thrust bearing
Plastic bearing liner with dual heat seal and grooved ball bearing.
Payload 40 kg/roller
|
external cylinder Ø in mm |
zinc plated steel cylinder
|
art.num. |
|
50X1,5 |
292 |
|
50X2,0 |
302 |
|
60X2,0 |
312 |
|
80X2,0 |
322 |
|
 |
Drive section
Dual sprocket wheel 1/2" x 5/16", 14 steel or alternatively plastic sprockets, available as a fixed drive with press or welded fit or as an accumulating conveyor. Press fit fixed drive should only be used for continuous conveyance.
Thrust bearing
Plastic bearing liner with dual heat seal and grooved ball bearing.
Payload 40 kg/roller
|
external cylinder Ø in mm |
zinc plated steel cylinder
|
art.num. |
|
50x1,5 |
332 |
|
50x2,0 |
342 |
|
60x2,0 |
352 |
|
80x2,0 |
362 |
|
 |
Drive section
Single sprocket wheel 5/8" x3/8", 13 or 15 steel sprockets, welded onto roller frame
Thrust bearing
Heavy duty, sheet steel liner with grooved ball bearing.
Payload 120 kg/bearing
|
external cylinder Ø in mm |
zinc plated steel cylinder
|
art.num. |
|
63,5x2,9 |
372 |
|
80x2,0 |
382 |
|
80x3,0 |
392 |
|
88,9x2,9 |
402 |
|
 |
Drive section
Dual sprocket wheel 5/8" x3/8", 13 or15 steel sprockets, welded onto roller frame
Thrust bearing
Heavy duty, sheet steel liner with grooved ball bearing.
Payload 120 kg/bearing
|
external cylinder Ø in mm |
zinc plated steel cylinder
|
art.num. |
|
63,5x2,9 |
412 |
|
80x2,0 |
422 |
|
80x3,0 |
432 |
|
88,9x2,9 |
442 |
|
External thread
|
|
Axles-Ø (mm)
|
art.num.
|
|
10 mm |
A 10 |
|
12 mm |
A 12 |
|
14 mm |
A 14 |
|
20 mm |
A 20 |
|
|
|
|
|
Internal thread
|
|
Axles-Ø (mm)
|
art.num.
|
|
12 mm |
C 12 |
|
14 mm |
C 14 |
|
20 mm |
C 20 |
|
25 mm |
C 25 |
|
|
|
|
|
Catalogue page: 160
|
|
 |
Drive section
Single sprocket wheel 1/2" x 5/16", 11 steel or alternatively plastic sprockets, available as a fixed drive with press or welded fit or as an accumulating conveyor. Press fit fixed drive should only be used for continuous conveyance.
Thrust bearing
Plastic bearing liner with dual heat seal and grooved ball bearing.
Payload 40 kg/roller
|
external cylinder Ø in mm |
aluminium cylinder
|
art.num. |
|
50x1,5 |
173 |
|
 |
Drive section
Dual sprocket wheel 1/2" x 5/16", 14 steel or alternatively plastic sprockets, available as a fixed drive with press or welded fit or as an accumulating conveyor. Press fit fixed drive should only be used for continuous conveyance.
Thrust bearing
Plastic bearing liner with dual heat seal and grooved ball bearing.
Payload 40 kg/roller
|
external cylinder Ø in mm |
aluminium cylinder
|
art.num. |
|
50x1,5 |
183 |
|
External thread
|
|
Axles-Ø (mm)
|
art.num.
|
|
10 mm |
A 10 |
|
12 mm |
A 12 |
|
14 mm |
A 14 |
|
|
|
|
|
Internal thread
|
|
Axles-Ø (mm)
|
art.num.
|
|
12 mm |
C 12 |
|
14 mm |
C 14 |
|
|
|
|
|
Catalogue page: 161
|
|
 |

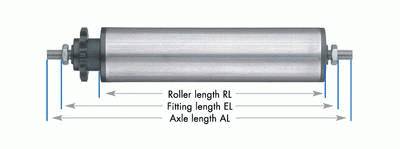

Drive section
Single sprocket wheel 1/2" x 5/16", 11 steel or alternatively plastic sprockets, available as a fixed drive with press or welded fit or as an accumulating conveyor. Press fit fixed drive should only be used for continuous conveyance.
Thrust bearing
Plastic bearing liner with dual heat seal and grooved ball bearing.
Payload 40 kg/roller
|
external cylinder Ø in mm |
stainless steel cylinder
|
art.num. |
|
50X1,5 |
234 |
|
50X2,0 |
244 |
|
60,3x1,65 |
254 |
|
80x2,0 |
264 |
|
 |
Drive section
Dual sprocket wheel 1/2" x 5/16", 14 steel or alternatively plastic sprockets, available as a fixed drive with press or welded fit or as an accumulating conveyor. Press fit fixed drive should only be used for continuous conveyance.
Thrust bearing
Plastic bearing liner with dual heat seal and grooved ball bearing.
Payload 40 kg/roller
|
external cylinder Ø in mm |
stainless steel cylinder
|
art.num. |
|
50x1,5 |
274 |
|
50x2,0 |
284 |
|
60,3x1,65 |
294 |
|
80x2,0 |
304 |
|
|
|
Drive section
Single sprocket wheel 5/8" x3/8", 13 or 15 steel sprockets, welded onto roller frame
Thrust bearing
Heavy duty, sheet steel liner with grooved ball bearing.
Payload 120 kg/bearing
|
external cylinder Ø in mm |
stainless steel cylinder
|
art.num. |
|
80x2,0 |
314 |
|
 |
Drive section
Dual sprocket wheel 5/8" x3/8", 15 steel sprockets, welded onto roller frame
Thrust bearing
Heavy duty, sheet steel liner with grooved ball bearing.
Payload 120 kg/roller
|
external cylinder Ø in mm |
stainless steel cylinder
|
art.num. |
|
80x2,0 |
324 |
|
External thread
|
|
Axles-Ø (mm)
|
art.num.
|
|
10 mm |
A 10 |
|
12 mm |
A 12 |
|
14 mm |
A 14 |
|
20 mm |
A 20 |
|
|
|
|
|
Internal thread
|
|
Axles-Ø (mm)
|
art.num.
|
|
12 mm |
C 12 |
|
14 mm |
C 14 |
|
20 mm |
C 20 |
|
25 mm |
C 25 |
|
|
|
|
|
Catalogue page: 162
|
|
